MIL-PRF-123D

APPENDIX A

g. Unit S: This example shows various rejectable characteristics which may be observed on the radial leaded

device (see figure A-7). Description of the numbered defects are as follows:

(1) Lead-to-element interface of less than 80 percent is not acceptable.

(2) Cut, dent, or smash in the lead wire exceeding .050 inch (1.27 mm) in length or .005 inch (0.13 mm) in

depth is rejectable.

(3) Element is not properly seated in the "saddle". Gaps in excess of .015 inch (0.38 mm) are rejectable.

(4) Chip-outs in the ceramic surface which expose electrodes are not acceptable.

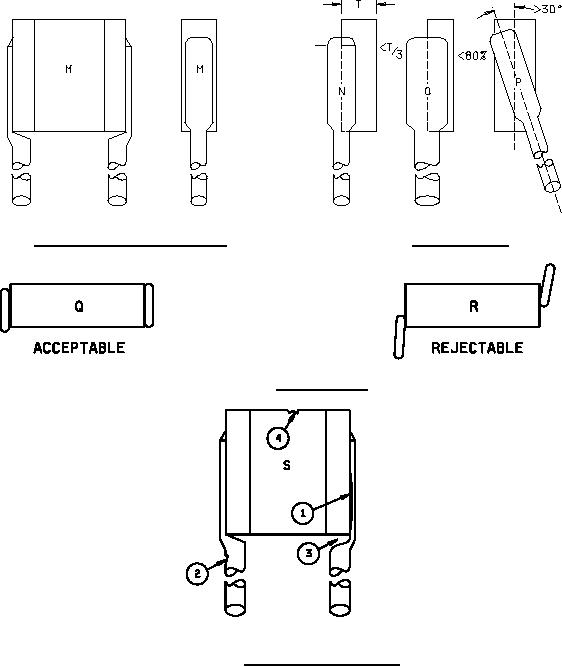

FIGURE A-4. Ideal condition (acceptable unit).

FIGURE A-5. Rejectable units.

FIGURE A-6. Chip alignment.

FIGURE A-7. Rejectable characteristics.
