MIL-DTL-3965 Capacitor, Fixed Electrolytic \(Nonsolid Electrolyte\), TantalumThis specification covers the general requirements for tantalum, electrolytic \(nonsolid electrolyte\), fixed capacitors \(polarized and nonpolarized\), hermetically and nonhermetically sealed \(see 1.2.1.7\) in metal cases; style CL67 and all tubular-foil styles are insulated \(see 6.1\). This specification also covers removable counting brackets for use with the CL55-series capacitors.

Pages 1 - - 22 - 23 - 24 - 25 - 26 - 27 - 28 - 29 - 30 - 31 - 32 - 33 - 34 - 35 - 36 - 37 - 38 - 39|||


MIL-DTL-3965H
NOTE: A polarizing voltage must be applied to the capacitor which on negative alternations of the ripple voltage
will preclude polarity reversal and on positive alternations will not cause the capacitor rated voltage to be
exceeded.

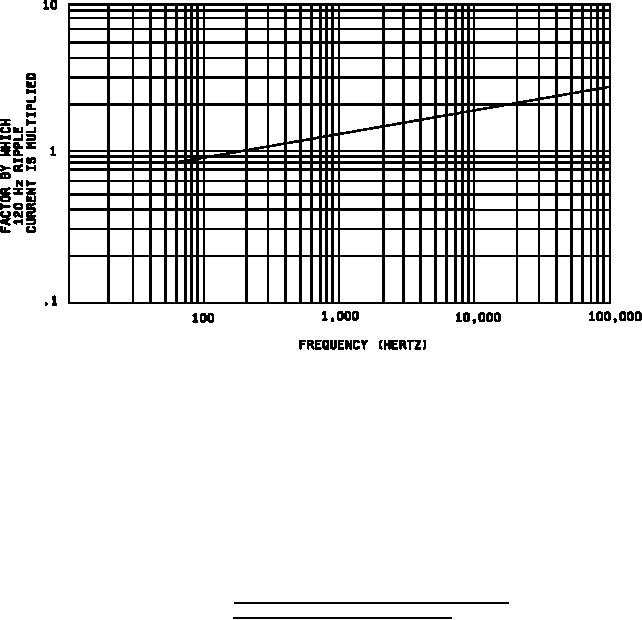

FIGURE 3. Ripple current correction factors (styles CL10,
CL13, CL14, CL16, CL17 and CL18.
