MIL-DTL-3965H
6.4.2 Application information for styles CL10, CL13, CL14, CL16, CL17, and CL18.
6.4.2.1 Thermal shock. When these styles, in application, are not subjected to more than five cycles (see 4.7.10,
they may be operated up to 175°C when properly voltage derated (see figure 2).
6.4.2.2 Ripple current. The maximum allowable rms ripple current (in milliamperes) is shown in table XI. The
values are for 120 Hz operation over rated temperature (-55°C to +125°C).

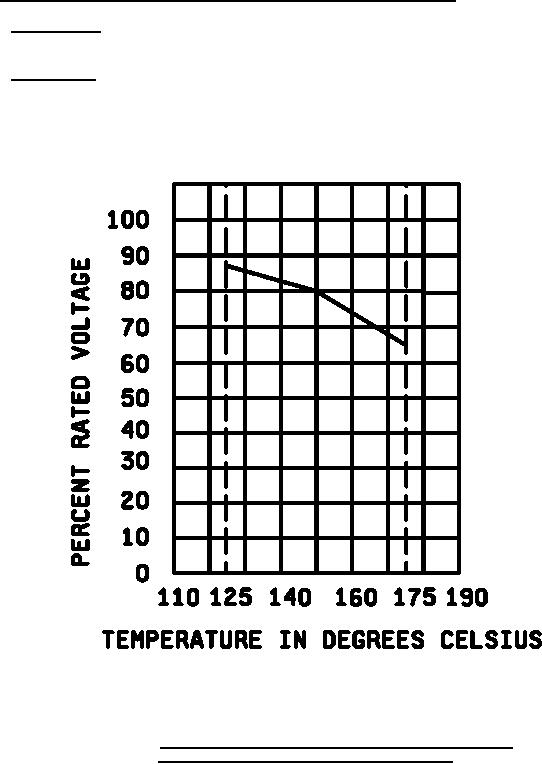

FIGURE 2. Voltage derating with temperature (125°C to 175°C) (styles
CL10, CL13, CL14, CL16, CL17, and CL18 only).
29
