MIL-C-25 Capacitors, Fixed, Paper Or Plastic Dielectric, Direct Current, \(Hermetically Sealed In Metal Cases\), General Specification ForThis specification covers the general requirements for direct-current \(dc\) paper-dielectric, fixed capacitors hermetically sealed in metal cases, intended primarily for filter, by-pass, and blocking purposes where the alternating-current \(ac\) component of the impressed voltage is small with respect to the dc voltage rating.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16


. .
MIL-C-25F
TABLE VI. Insulation-resistance correction factors.
Degrees centigrade
Correction factor
Degrees centigrade
Correction factor
+20
1.42
+28
0.82
+21
1.33
+29
0.76
+22
1.24
+30
0.71
+23
1.16
+31
0.67
+24
1.08
+32
0.63
+25
1.00
+33
0.59
+26
0.94
+34
0.55
+27
0.87
+35
0.51

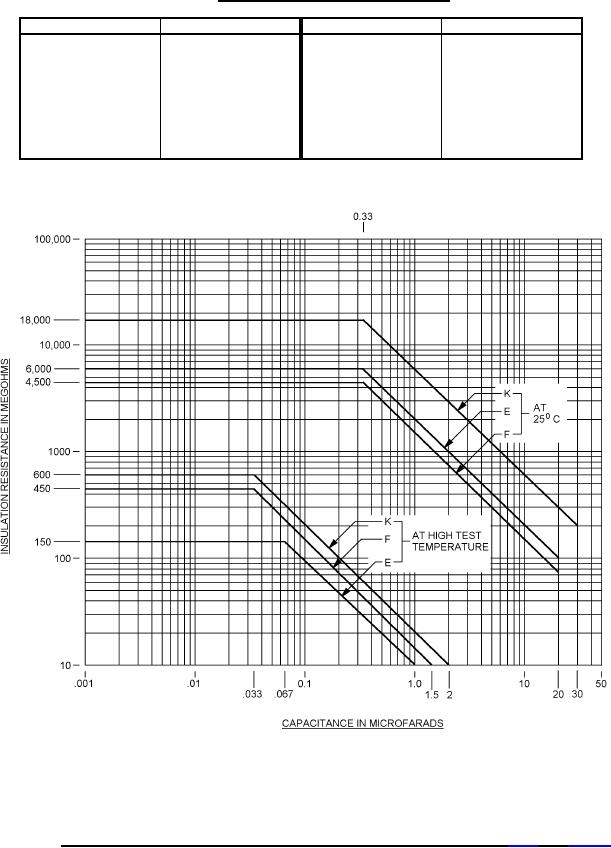

FIGURE 1. Graphical representation of insulation resistance requirements specified in 3.6.1 and table V.
6
