MIL-PRF-87164 Capacitors, Fixed, Mica Dielectric, High Reliability, General Specification For \(See Notice 1 For Replacement Information\)This specification covers the general requirements for high reliability, mica dielectric, fixed capacitors for space, missile, and other high reliability applications. Capacitors covered by this specification may be used in critical applications where the utmost in stability and dependability is required and where variations in capacitance with respect to temperature, voltage, frequency, and life cannot be tolerated \(see 6.1\). An acceleration factor of 25:1 has been used to relate life test data obtained at 150 percent of rated voltage at rated temperature to rated voltage at rated temperature.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11


MIL-PRF-87164A

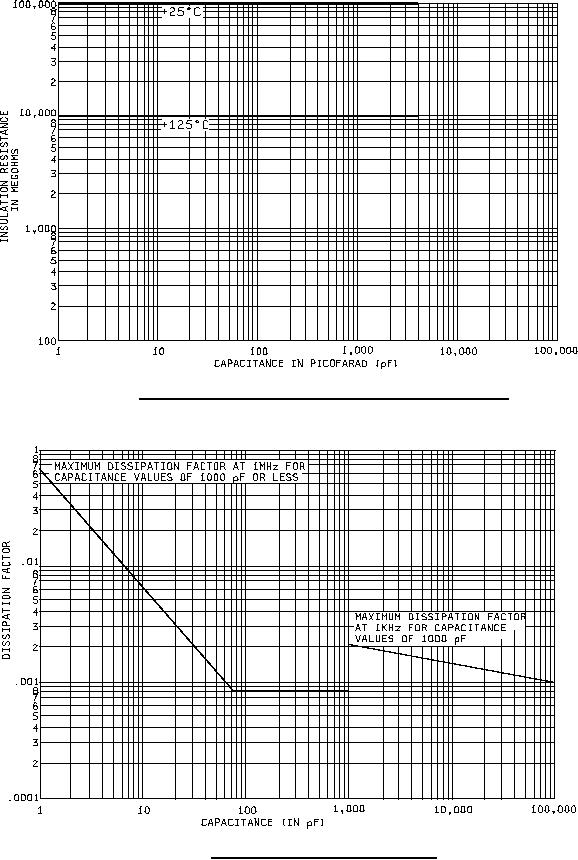

FIGURE 1. Insulation resistance versus capacitance at test temperatures.
FIGURE 2. Capacitance versus dissipation factor.
5
