MIL-PRF-39006/21C

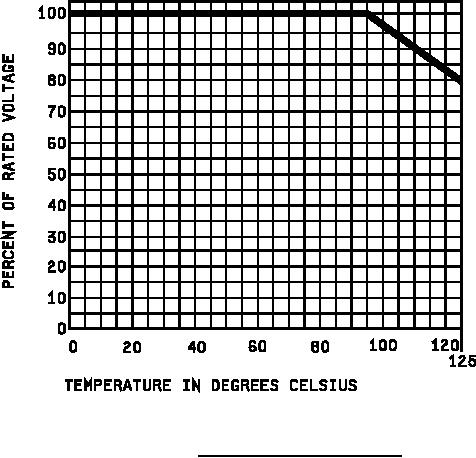

FIGURE 2. Voltage derating with temperature.
REQUIREMENTS:
Design and construction:
Dimensions and configuration - See figure 1.
Case type: Tubular, insulated.
Seal type - Hermetic (glass-to-tantalum anode).
Terminals - Axial-wire lead:
Anode (type N51 of MIL-STD-1276).
Cathode (type C51 of MIL-STD-1276).
Rated temperature: -55°C to +85°C, voltage derated to +125°C (see figure 2).
Rated voltage: See table I.
Capacitance (Cap.) (nom): See table I.
Cap. tolerance: See table I.
FR level: See table I.
6
