INCH-POUND
MIL-PRF-39022/10B
5 November 2008
SUPERSEDING
MIL-PRF-39022/10A
25 May 2001
PERFORMANCE SPECIFICATION SHEET
CAPACITORS, FIXED, METALLIZED, PAPER-PLASTIC FILM DIELECTRIC,
DIRECT CURRENT (HERMETICALLY SEALED IN METAL CASES)
ESTABLISHED RELIABILITY, STYLE CHR10 (INSULATED)
This specification sheet is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-PRF-39022.
INACTIVE FOR NEW DESIGN
AFTER 25 MAY 2001
NOTES:
1. Number 24 AWG wire (.020 ± .002 inch (0.51 ± 0.05 mm)) for case diameters of .175 inch (4.45 mm) and .195
(4.95 mm).
Number 22 AWG wire (.025 ± .002 inch (0.64 ± 0.05 mm)) for case diameters of .235 inch (5.97 mm) and .312
(7.92 mm).
Number 20 AWG wire (.032 inch ± .002 inch (0.81 ± 0.05 mm)) for case diameters of .400 inch (10.16 mm)
and over (see table I for exceptions.)
Number 18 AWG wire (.040 inches ± .002 inch): See table I.
2. See table I for additional dimensions.
3. Dimensions are in inches.
4. Metric equivalents (to the nearest 0.01 mm) are given for general information only.
5. Insulating sleeve shall extend beyond the capacitor body but shall not exceed .031 inch (0.79 mm) on either
end. Insulating sleeve thickness shall not exceed .016 inch (0.41 mm).
6. Plastic insulating sleeve shall be transparent; marking shall be placed on the capacitor case.
7. Metric equivalents are in parentheses.
8. Lead length may be a minimum of one inch long for use in tape and reel packaging, when specified in the
ordering data.

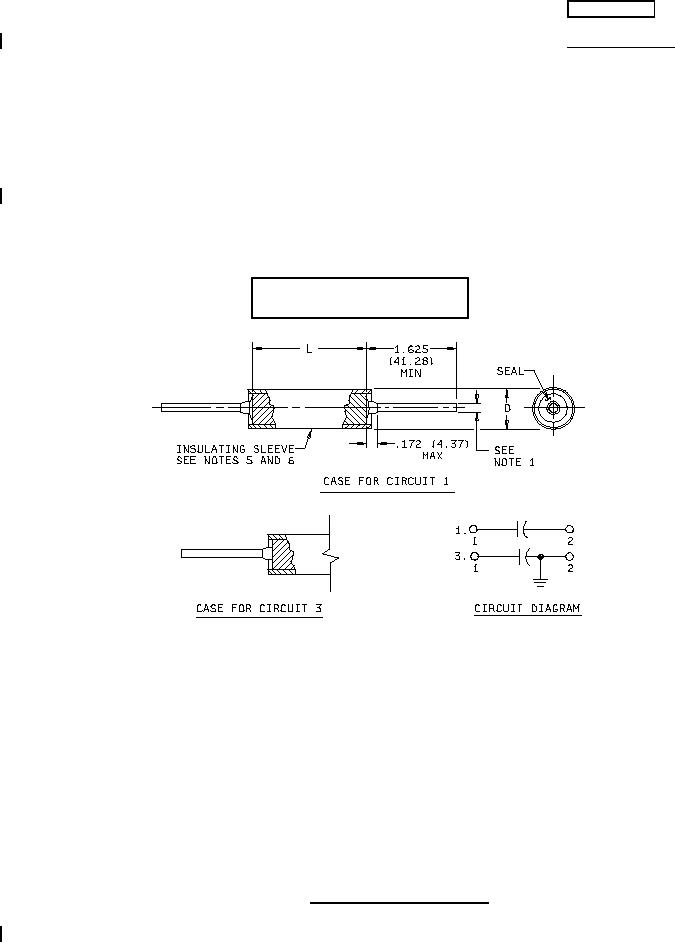

FIGURE 1. Dimensions and configuration.
