INCH-POUND
MIL-PRF-19978/8A
27 May 1999
SUPERSEDING
MIL-C-19978/8
20 October 1972
PERFORMANCE SPECIFICATION SHEET
CAPACITORS, FIXED, PLASTIC DIELECTRIC, AXIAL-WIRE TERMINAL,
TUBULAR (INSULATED) (HERMETICALLY SEALED IN METAL CASES),
ESTABLISHED RELIABILITY, STYLE CQR07
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The complete requirements for procuring the capacitors described herein
shall consist of this specification and MIL-PRF-19978.
SEE NOTE 3
Inches
mm
Inches
mm
.001
.03
.235
5.97
.004
.10
.312
7.92
.020
.51
.400
10.16
.025
.64
.562
14.27
.032
.81
1.000
25.40
.172
4.37
1.562
39.67
.175
4.45
1.625
41.28
.195
4.95
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Leads shall be tinned solid wire, .020 (No. 24 AWG) for cases .175 and .195 in diameter; .025 (No. 22 AWG)
for cases .235 through .312 diameter; and .032 (No. 20 AWG) for cases .400 diameter and above.
Tolerance on all lead wire diameters shall be +.004, -.001.
4. Capacitors with dimension L of 1.562 or D of .562 and larger, are not intended to be supported by their
leads. These capacitors shall be supported with a supplementary means of mounting, such as a wrap-
around band. The supporting device will not be supplied with the capacitor.
5. Lead length may be a minimum of 1-inch long for use in tape and reel packaging when specified in the
ordering data.

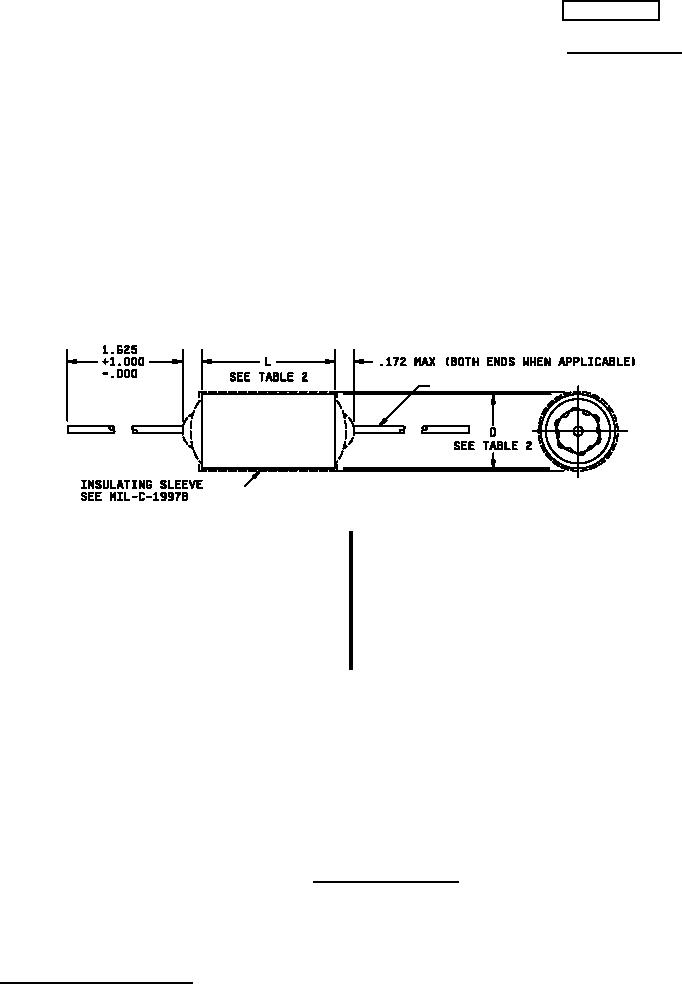

FIGURE 1. Style CQR07 capacitors.
AMSC N/A
1 of 7
FSC 5910
DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited.
