MIL-C-11272E

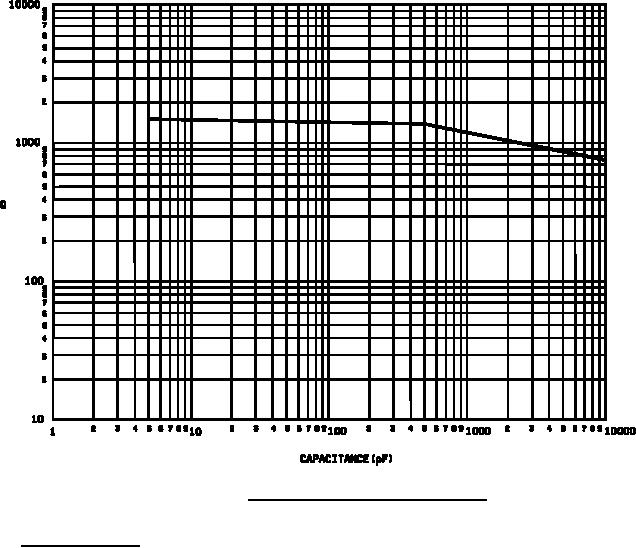

FIGURE 1. Quality factor (Q) at 1 megahertz (MHz).
3.14 Moisture resistance. When tested as specified in 4.6.11, capacitors shall meet the following requirements:
a.
Visual examination - There shall be no evidence of corrosion or mechanical damage that will affect life or
serviceability.
b.
At 90 to 95 percent relative humidity:
(1) Insulation resistance - 1,000 megohms, minimum.
At 50 ±5 percent relative humidity:
c.
(1) Dielectric withstanding voltage - There shall be no evidence of damage, arcing, or breakdown.
(2) Insulation resistance - Not less than 100,000 megohms.
(3) Capacitance - Change not more than 0.5 percent of the nominal value or 0.5 pF, whichever is
greater, from the initial value obtained when measured as specified in 4.6.5.
(4) Dissipation factor - Not to exceed 0.001.
5
