MIL-C-11015/19E

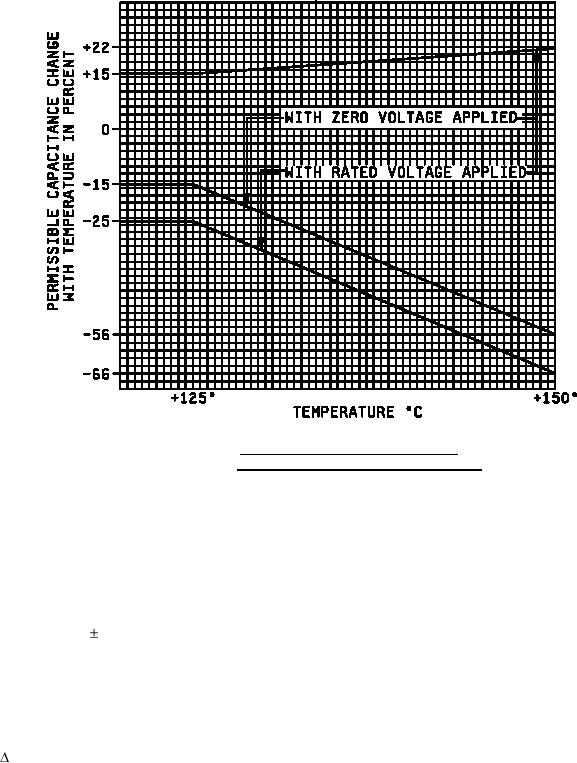

FIGURE 2. Extended voltage-temperature limits
(1,200 pF through 10,000 pF capacitors).
Salt spray (corrosion): Not applicable.
Moisture resistance: In accordance with MIL-C-11015.
DWV - 250 percent of rated voltage.
IR - Not less than 10 percent of initial requirement.
Cap. - Within 10 percent of initial measured value.
Solderability: In accordance with MIL-C-11015; 2 terminals.
Resistance to soldering heat: In accordance with MIL-C-11015.
IR - 100,000 megohms, min or 1,000 megohm-microfarads, min, whichever is less.
Cap. - +15, -5 percent of initial measurement.
DF - 2.5 percent, max.
Voltage-temperature limits: In accordance with MIL-C-11015 and figure 2 (for 1,200 pF through 10,000 pF
capacitors).
4
