INCH-POUND
MIL-C-11015/19E
14 May 2001
SUPERSEDING
MIL-C-11015/19D
28 September 1970
MILITARY SPECIFICATION SHEET
CAPACITORS, FIXED, CERAMIC DIELECTRIC (GENERAL PURPOSE),
STYLE CK06
The requirements for acquiring the capacitors described herein
shall consist of this specification and MIL-C-11015.
This specification is approved for use by all Depart-
ments and Agencies of the Department of Defense.
INACTIVE FOR NEW DESIGN
after 28 September 1970. For new design use MIL-PRF-39014/2.
Inches
Mm
.001
.03
.004
.10
.015
.38
.025
.64
.030
.76
.090
2.29
.200
5.08
NOTES:
.290
7.37
1. Dimensions are in inches.
1.250
31.75
2. Unless otherwise specified, tolerance is .010 (.25 mm).
3. Metric equivalents are given for general information only.
4. PIN marking to be divided into two or three lines; one line marking shall not be used.
5. Lead length may be a minimum of .625 inch (15.88 mm) for use in tape and reel automatic insertion
equipment, when specified.

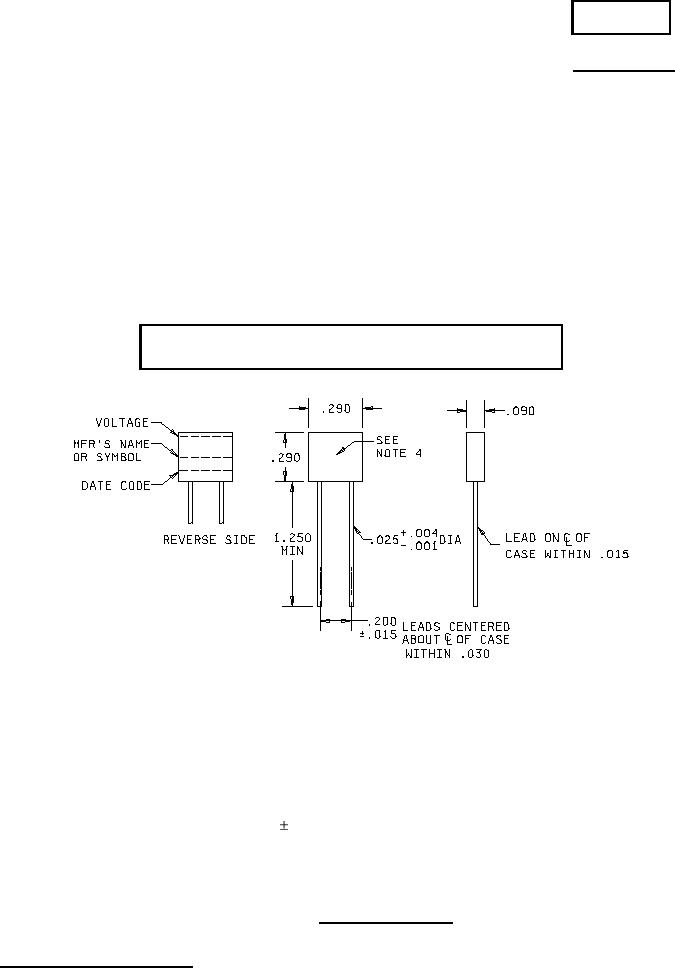

FIGURE 1. Style CK06 capacitors.
AMSC N/A
1 of 6
FSC 5910
