INCH-POUND
MIL-PRF-39014/1H
27 April 2004
SUPERSEDING
MIL-PRF-39014/1G
16 September 1997
PERFORMANCE SPECIFICATION SHEET
CAPACITORS, FIXED, CERAMIC DIELECTRIC
(GENERAL PURPOSE),
ESTABLISHED RELIABILITY AND NONESTABLISHED RELIABILITY,
STYLE CKR05, NATO TYPE DESIGNATION NCC61
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall
consist of this specification sheet and MIL-PRF-39014.
Inches
mm
.015
0.38
.026
0.66
.045
1.14
.090
2.29
.100
2.54
.190
4.83
.200
5.08
1.250
31.75

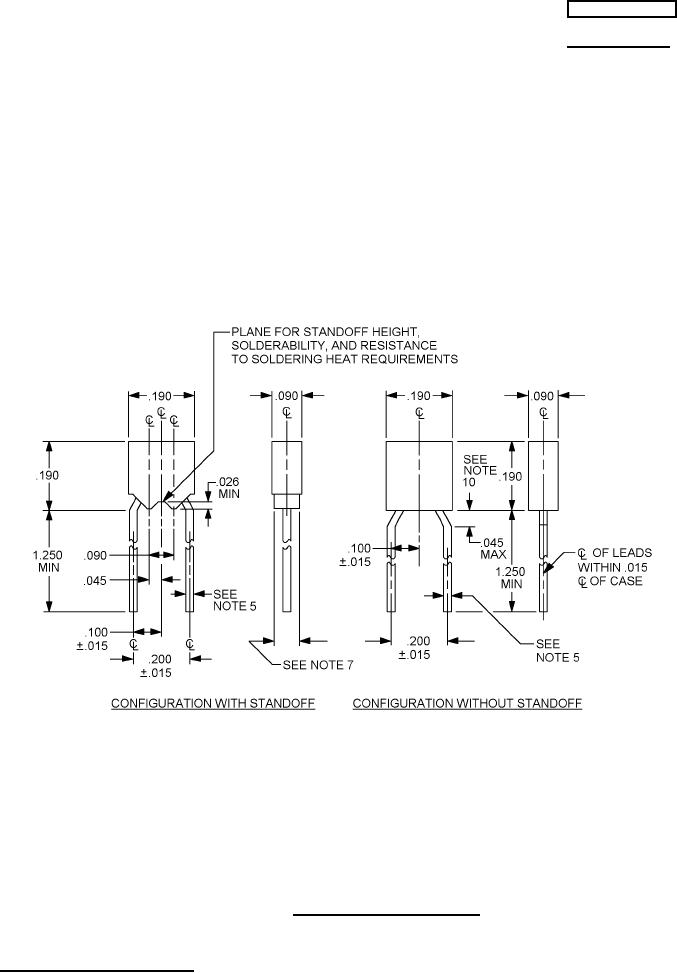

FIGURE 1. Dimensions and configurations.
AMSC N/A
FSC 5910
DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited.
