INCH-POUND
MIL-PRF-39001/5E
18 February 2009
SUPERSEDING
MIL-PRF-39001/5D
17 February 2000
PERFORMANCE SPECIFICATION SHEET
CAPACITORS, FIXED, MICA DIELECTRIC, ESTABLISHED RELIABILITY,
STYLES CMR03, CMR04, CMR05, CMR06, CMR07, AND CMR08
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification and MIL-PRF-39001.
NOTES:
1. Dimensions are in inches (see table I).
2. Millimeters are in parenthesis (see table I).
3. Metric equivalents (to the nearest .01 mm) are given for general information only.
4. The "R" dimension may not be solderable as it may be covered by a clear epoxy or resinous coating.

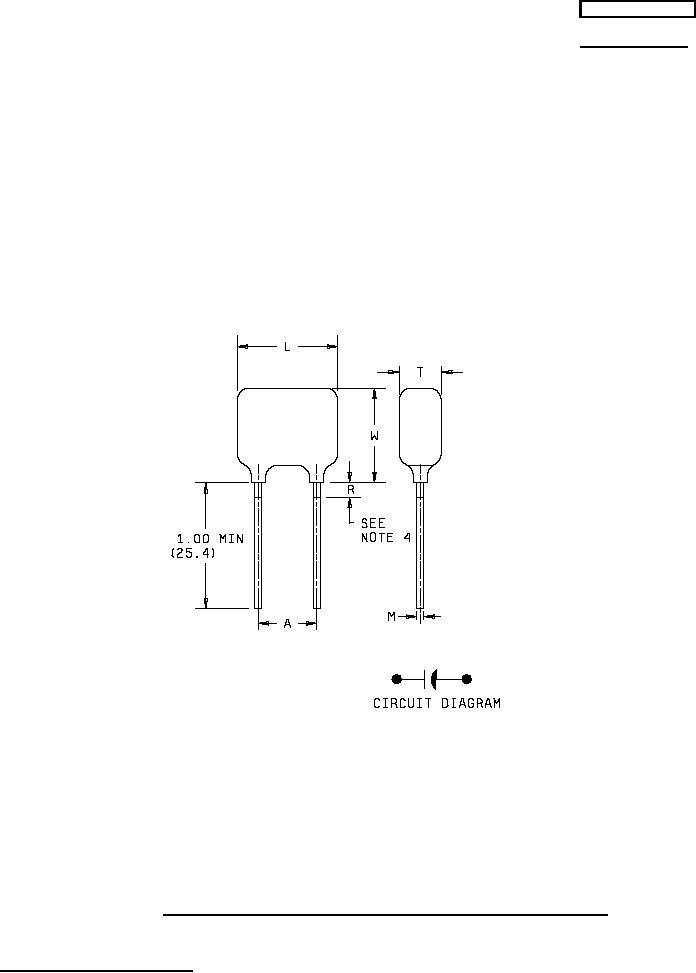

FIGURE 1. Styles CMR03, CMR04, CMR05, CMR06, CMR07, and CMR08 capacitors.
AMSC N/A
FSC 5910
DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited.
