MIL-PRF-11693 Capacitors, Feed Through, Radio-Interference Reduction, Dc \(Hermetically Sealed In Metal Cases\), Established And Non-Established Reliability General Specification ForThis specification covers the general requirements for established reliability \(ER\) and non-ER capacitors designed for operation with direct current \(dc\), paper, paper plastic, and plastic \(extended foil\) dielectric, radio-interference-reduction, feed-through capacitors, hermetically sealed in metal cases \(see 6.6.2\), for use primarily in broadband, radio-interference suppression application. Capacitors meeting the established reliability requirements specified herein have a maximum failure rate of 1.0 percent per 1,000 hours. This failure rate is established with a 90-percent confidence limit based on the life test parameters specified and are maintained at a 10-percent producer?╞s risk. An acceleration factor of 5:1 has been used to relate the life test data obtained at 140 percent of rated dc voltage at the applicable high test temperature to the rated voltage at the applicable high test temperature.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16


. .
MIL-PRF-11693E

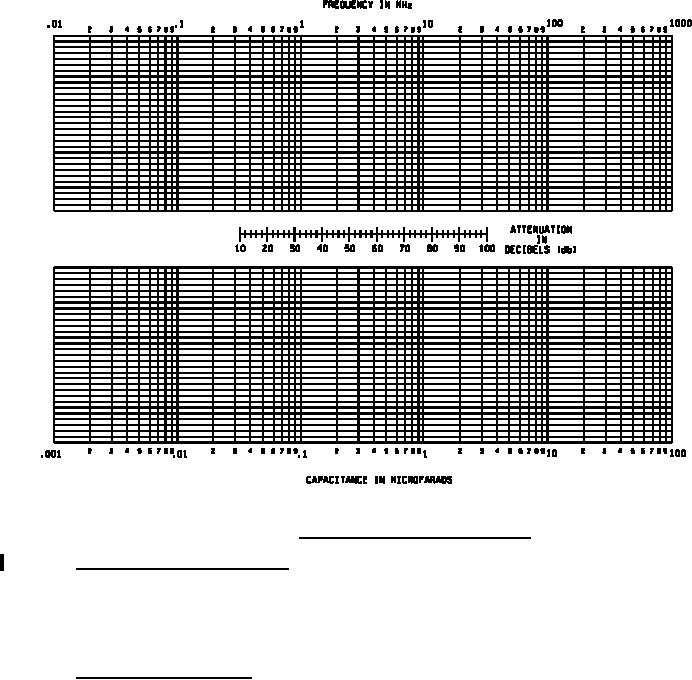

FIGURE 3. Insertion-loss chart for ideal capacitors.
6.11 Environmentally preferable material. Environmentally preferable materials should be used to the maximum
extent possible to meet the requirements of this specification. As of the dating of this document, the U.S.
Environmentally Protection Agency (EPA) is focusing efforts on reducing 31 priority chemicals. The list of chemicals
and additional information is available on their website at https://www.epa.gov/osw/hazard/wastemin/priority.htm.
Included in the list of 31 priority chemicals are cadmium, lead, and mercury. Use of the materials on the list should
be minimized or eliminated unless needed to meet the requirements specified herein (see section 3).
6.12 Changes from previous issue. The margins of this specification are marked with vertical lines to indicate
where changes from the previous issue were made. This was done as a convenience only and the Government
assumes no liability whatsoever for any inaccuracies in these notations. Bidders and contractors are cautioned to
evaluate the requirements of this document based on the entire content irrespective of the marginal notations and
relationship to the last previous issue.
