INCH-POUND
MIL-C-19978/19C
18 June 2001
SUPERSEDING
MIL-C-19978/19B
18 April 1995
MILITARY SPECIFICATION SHEET
CAPACITORS, FIXED, PLASTIC (OR PAPER-PLASTIC) DIELECTRIC,
AXIAL-WIRE TERMINAL, TUBULAR (INSULATED),
(HERMETICALLY SEALED IN METAL CASES),
STYLE CQ05
INACTIVE FOR NEW DESIGN
AFTER 30 AUGUST 1974
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification and MIL-PRF-19978.
Inches
mm
Inches
mm
.001
0.03
.312
7.92
.004
0.10
.400
10.16
NOTES:
.025
0.64
.562
14.27
1. Dimensions are in inches.
.032
0.81
1.000
25.40
2. Metric equivalents are given for general information only.
.172
4.37
1.438
36.53
3. Leads shall be of tinned solid wire, .025 (No. 22 AWG) for
.235
5.97
1.625
41.28
cases .235 and .312 in diameter; and .032 (No. 20 AWG) for
cases .400 diameter and above. Tolerance on all lead wire diameters shall be + .004, -.001.
4. Capacitors with dimension L. of 1.438 or D of .562 and larger, are not intended to be supported by their
leads. These capacitors shall be supported with a supplementary means of mounting, such as a wrap-
around band. The supporting device will not be supplied with the capacitor.
5. Lead length may be a minimum of 1 inch long for use in tape and reel packaging when specified in the
ordering data.

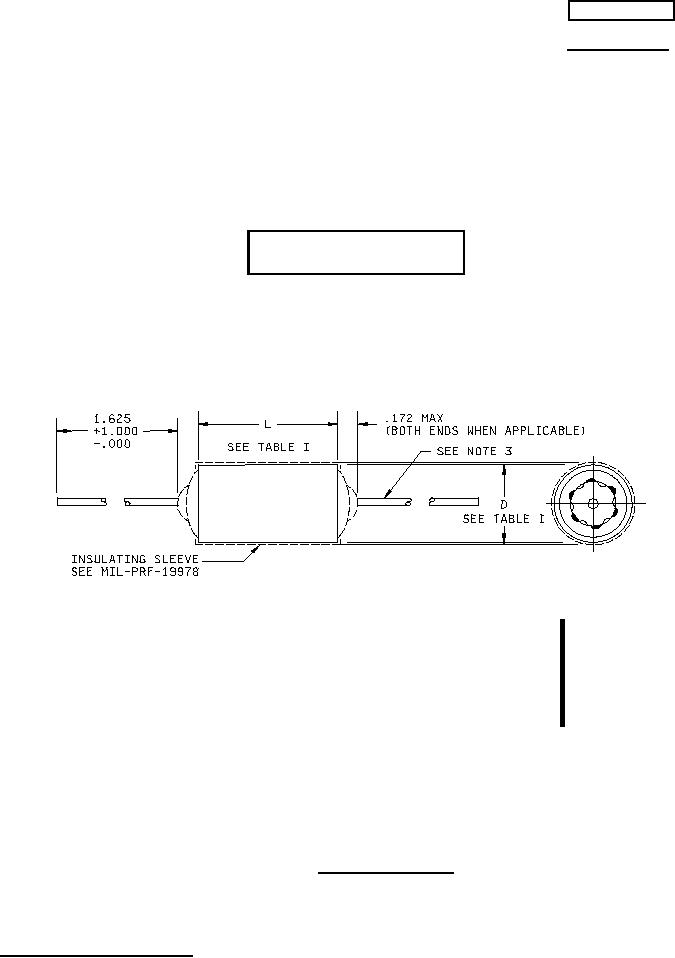

FIGURE 1. Style CQ05 capacitors.
AMSC N/A
1 of 7
FSC 5910
DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited.
