MIL-C-11015/18E

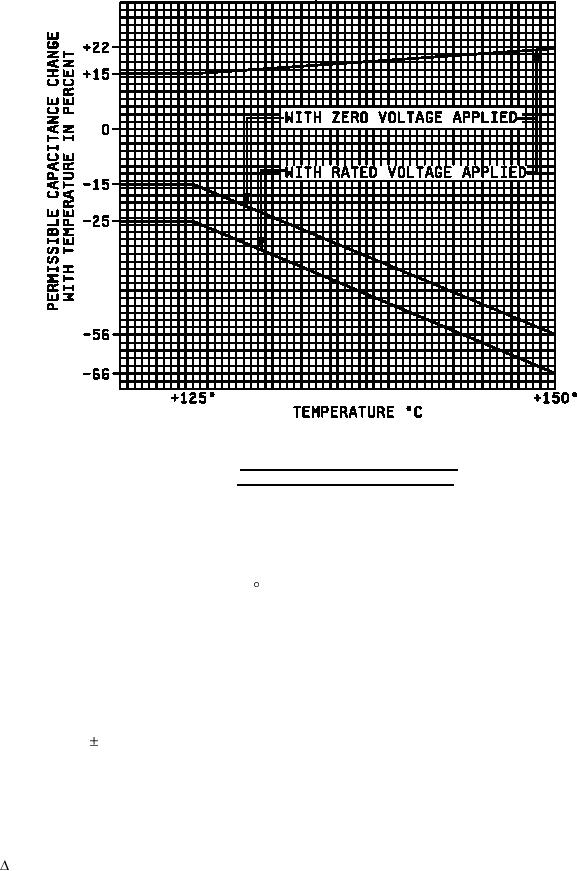

FIGURE 2. Extended voltage-temperature limits
10 pF through 1,000 pF capacitors).
Vibration, high frequency: In accordance with MIL-C-11015 and method 204 of MIL-STD-202, condition D (20 g's).
Thermal shock and immersion: In accordance with MIL-C-11015.
IR - Not less than 50 percent of initial 25 C requirement.
Salt spray (corrosion): Not applicable.
Moisture resistance: In accordance with MIL-C-11015.
DWV - 250 percent of rated voltage.
IR - Not less than 10 percent of initial requirement.
Cap. - Within 10 percent of initial measured value.
Solderability: In accordance with MIL-C-11015; 2 terminals.
Resistance to soldering heat: In accordance with MIL-C-11015.
IR - 100,000 megohms, min or 1,000 megohm-microfarads, min, whichever is less.
Cap. - +15, -5 percent of initial measurement.
DF - 2.5 percent, max.
4
