INCH-POUND
MIL-PRF-55681/5E
10 October 2006
SUPERSEDING
MIL-PRF-55681/5D
3 July 1997
PERFORMANCE SPECIFICATION SHEET
CAPACITORS, CHIP, MULTIPLE LAYER, FIXED, CERAMIC DIELECTRIC,
ESTABLISHED RELIABILITY AND NON-ESTABLISHED RELIABILITY,
STYLES CDR21, CDR22, CDR23, CDR24, AND CDR25 (HIGH FREQUENCY)
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist
of this specification sheet and MIL-PRF-55681.
L
L1
2 PLS
.0 9 3
W
± .0 0 5
SO LDER
.0 0 4
± .0 0 1
B U IL D U P
T
.2 5 0
M IN
Style CDR21
C OF CASE
L
.0 2 5
MAX
C O F T E R M IN A L
L
L1
L
2 PLS
.0 9 3
W
± .0 0 5
SO LDER
.0 0 4 ± .0 0 1
B U IL D U P
T
.2 5 0
M IN
Style CDR22

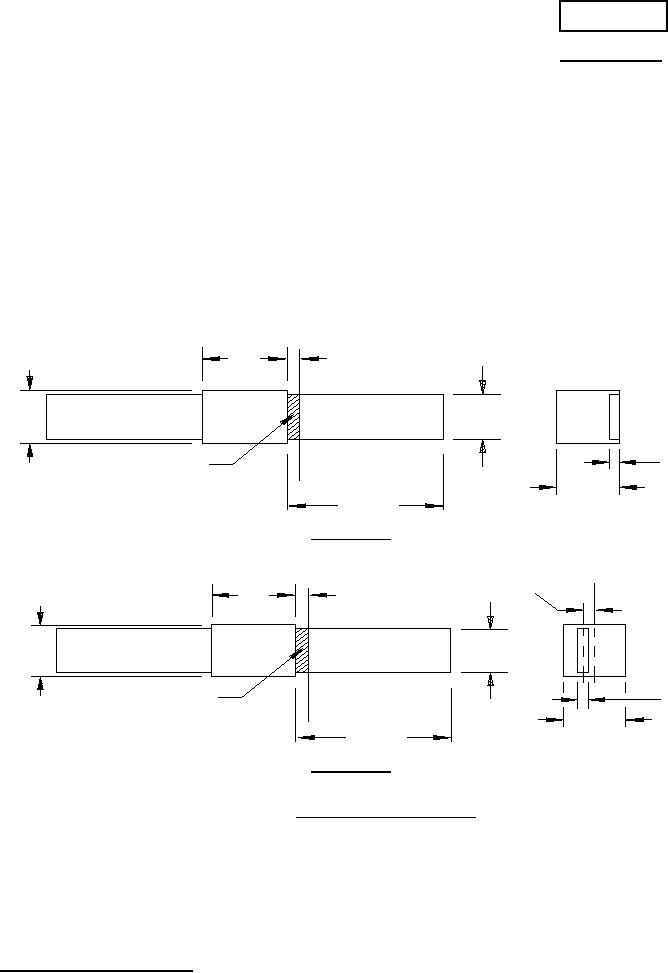

FIGURE 1. Dimensions and configuration.
