MIL-PRF-55514/4F
*

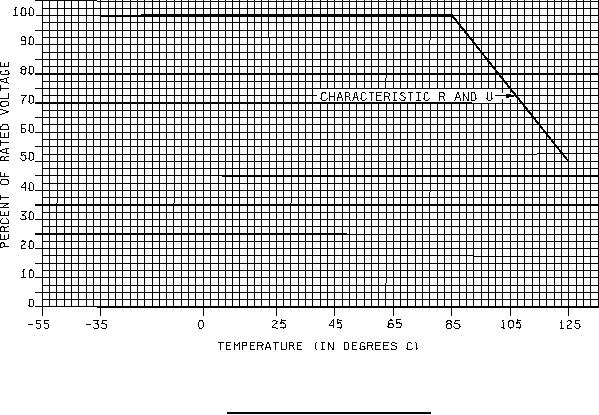

FIGURE 3. Voltage derating with temperature.
REQUIREMENTS:
Dimensions and configuration: See figure 1, figure 2, and table I.
Terminals: Axial wire-lead (A) or radial wire-lead (R), as shown in table I.
*
Characteristic: N, R, or U, as shown in table I.
*
Rated voltage: 50 V (A), 100 V (B), 200 V (C), or 400 V (E), as shown in table I. When properly voltage derated
(see figure 3), characteristic R and U capacitors will operate to 125°C.
Capacitance (nom): See table I.
Capacitance tolerance: ±1 percent (F), ±2 percent (G), ±5 percent (J), ±10 percent (K), as shown in table I.
Product level: Non-established reliability - C; Established reliability - M, P, R, or S.
Vibration, high frequency (direction and duration of motion, R-type terminals): Three mutually perpendicular
directions, perpendicular to the width, length, and thickness; 3 hours in each direction.
