INCH-POUND
MIL-PRF-55365/7B
3 July 1997
SUPERSEDING
MIL-C-55365/7A
23 August 1990
PERFORMANCE SPECIFICATION SHEET
CAPACITORS, CHIP, FIXED, TANTALUM, ESTABLISHED RELIABILITY,
STYLE CWR10
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this
specification and MIL-PRF-55365.
W
SOLDERABLE SURFACES
Inches
mm
Inches
mm
0.005
0.13
0.069
1.75
TANTALUM WIRE NIB
IDENTIFIES ANODE (+)
0.008
0.20
0.072
1.83
TERMINAL
TANTALUM WIRE
0.010
0.25
0.079
2.01
NIB NOT SOLDERABLE
0.015
0.38
0.085
2.16
SOLDERABLE
SURFACES
0.018
0.46
0.104
2.64
0.020
0.51
0.115
2.92
0.027
0.69
0.136
3.45
L
0.040
1.02
0.138
3.51
D
0.045
1.14
0.200
5.08
B
0.048
1.22
0.235
5.97
A
0.050
1.27
0.243
6.17
0.051
1.30
0.273
6.93
H
0.063
1.60
0.275
6.98
SOLDERABLE
SURFACES
Size code
L
W
H
A
B
D
C
.079 ±.008
.045 ±.010
.045 ±.010
.018 ±.008
.050 ±.010
.063 ±.008
R
.273 ±.008
.235 ±.010
.136 ±.010
.040 ±.020
.200 ±.027
.243 ±.010
S
.138 ±.005
.072 ±.008
.048 ±.008
.020 ±.010
.085 ±.015
.115 ±.010
V
.138 ±.005
.104 ±.010
.051 ±.010
.020 ±.010
.085 ±.015
.115 ±.010
X
.275 ±.010
.104 ±.010
.051 ±.010
.040 ±.020
.200 ±.027
.243 ±.010
Y
.275 ±.010
.104 ±.010
.069 ±.010
.040 ±.020
.200 ±.027
.243 ±.010
Z
.275 ±.010
.104 ±.010
.104 ±.010
.040 ±.020
.200 ±.027
.243 ±.010

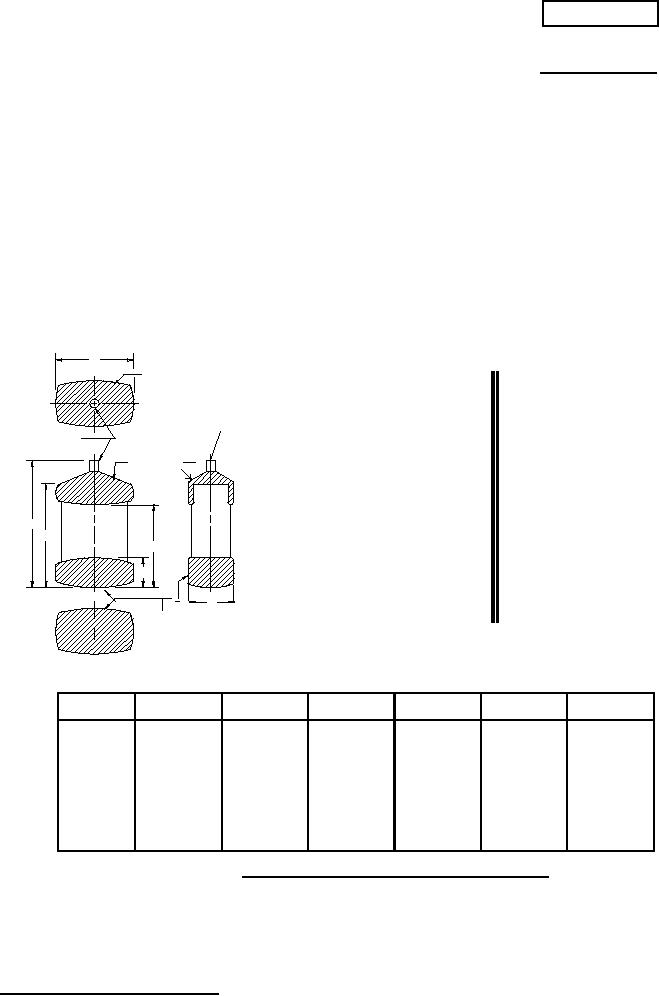

FIGURE 1. Style CWR10 (conformally coated) capacitors.
