INCH-POUND
MIL-PRF-39022/7D
25 May 2001
SUPERSEDING
MIL-PRF-39022/7C
19 July 1984
PERFORMANCE SPECIFICATION SHEET
CAPACITORS, FIXED, PAPER, DIELECTRIC (METALLIZED PLASTIC FILM),
ALTERNATING CURRENT (RMS)
(HERMETICALLY SEALED IN METAL CASES)
ESTABLISHED RELIABILITY,
STYLE CHR49 (UNINSULATED)
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-PRF-39022.
INACTIVE FOR NEW DESIGN
AFTER 25 MAY 2001
NOT TO BE USED WITH INSULATING SLEEVES
NOTES:
1. Number 20 AWG wire .032 ± .002 inch (0.81 ± 0.05 mm) for case diameter of .312 inch (7.92 mm).
Number 18 AWG wire .040 ± .002 inch (1.02 ± 0.05 mm) for case diameter of .400 inch (10.16 mm) and over.
2. See table I for additional dimensions.
3. Dimensions are in inches.
4. Metric equivalents are given for general information only.
5. Metric equivalents are in parentheses.
6. Lead length may be a minimum of one inch (25.4 mm) long for use in tape and reel packaging when specified
in the ordering data.

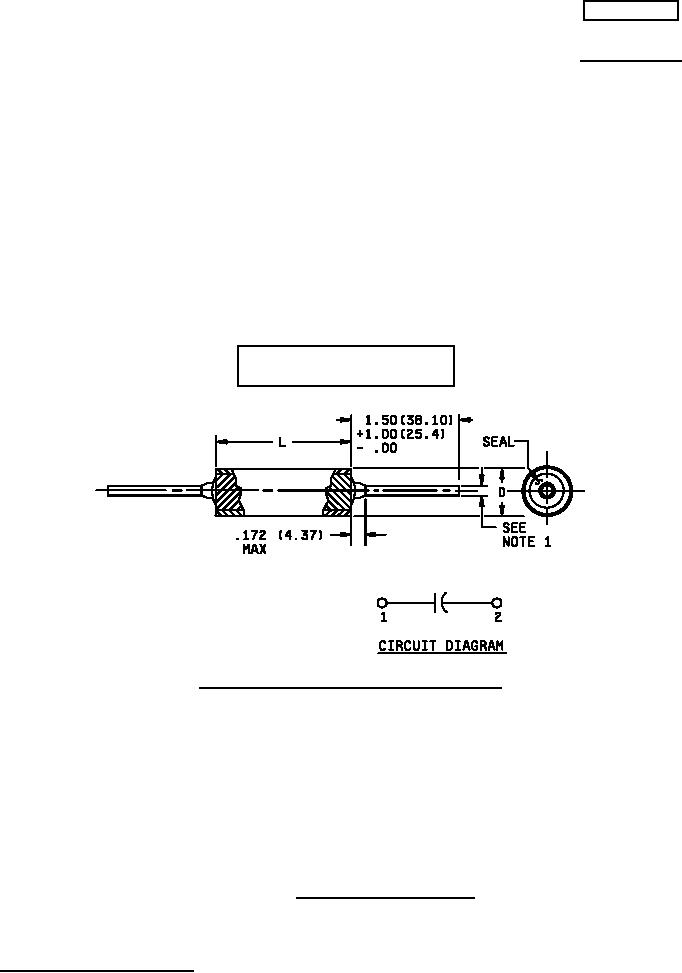

FIGURE 1. Dimensions and configuration.
