INCH-POUND
MIL-PRF-39014/23B
7 December 2006
SUPERSEDING
MIL-PRF-39014/23A
16 September 1997
PERFORMANCE SPECIFICATION SHEET
CAPACITORS, FIXED, CERAMIC DIELECTRIC
(GENERAL PURPOSE)
ESTABLISHED RELIABILITY,
STYLE CKR04
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of
this specification and MIL-PRF-39014.
Inches
mm
Inches
mm
.001
0.03
.090
2.29
.004
0.10
.100
2.54
.015
0.38
.190
4.83
.025
0.64
1.250
31.75
.050
1.27
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is ± .010 inch (.25mm).
4. For flush mounting .078 inch (1.98 mm) printed-circuit-hole diameter is required to clear shoulder.
5. Lead length may be a minimum of 1 inch long for use in tape and reel automatic insertion equipment, when
specified.

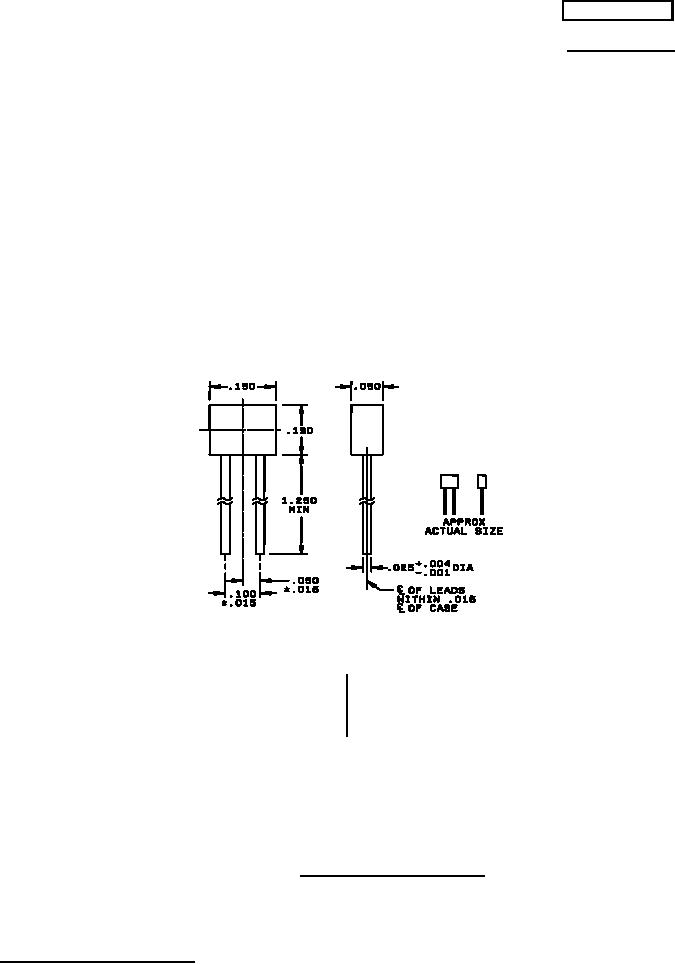

FIGURE 1. Dimensions and configurations.
AMSC N/A
FSC 5910
