MIL-PRF-39006/31C
Dimensions
Basic case
Insulated case
Case
E
L 1/
D
D
±.250 (6.35)
±.016 (0.41)
size
+.031 (0.79)
max
-.016 (0.41)
T1
.453 (11.51)
.188 (4.78)
.219 ( 5.56)
1.500 (38.10)
T2
.641 (16.28)
.281 (7.14)
.312 ( 7.92)
2.250 (57.15)
T3
.766 (19.46)
.375 (9.52)
.406 (10.31)
2.250 (57.15)
T4
1.062 (26.97)
.375 (9.52)
.406 (10.31)
2.250 (57.15)
1/ Length of basic case sleeving shall be as specified in MIL-PRF-39006.
FIGURE 1. Style CLR91 capacitors - Continued.
QUALIFICATION:
A manufacturer shall be considered qualified to this specification sheet by similarity if the manufacturer is qualified to
style CLR81 capacitors in MIL-PRF-39006/25 and if the design and construction of the capacitors in this specification
sheet is the same as the design and construction of the capacitors covered by MIL-PRF-39006/25.
REQUIREMENTS:
Design and construction:
Dimensions and configuration: See figure 1.
Case type: Tantalum, tubular, insulated.
Seal type: Hermetic (glass-to-tantalum anode).
Terminals: Axial-wire lead: Cathode and anode (type N32, N51, or N52 of MIL-STD-1276).
Rated temperature: -55°C to +85°C, voltage derated to +125°C (see figure 2).

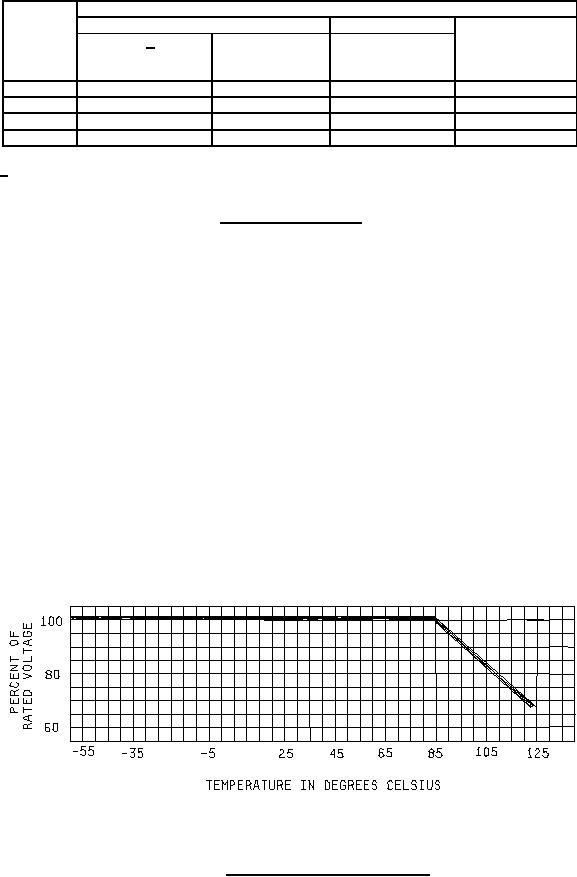

FIGURE 2. Voltage derating with temperature.
