INCH-POUND
MIL-PRF-39006/31C
21 April 2011
SUPERSEDING
MIL-PRF-39006/31B
20 October 2005
PERFORMANCE SPECIFICATION SHEET
CAPACITORS, FIXED, ELECTROLYTIC (NONSOLID ELECTROLYTE),
TANTALUM, (POLARIZED, SINTERED SLUG), (EXTENDED
RANGE), 85°C (VOLTAGE DERATED TO 125°C),
ESTABLISHED RELIABILITY, STYLE CLR91
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this document and MIL-PRF-39006.
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are in parentheses.
3. Metric equivalents are given for general information only.
4. The weld shall not be enclosed in the end seal.

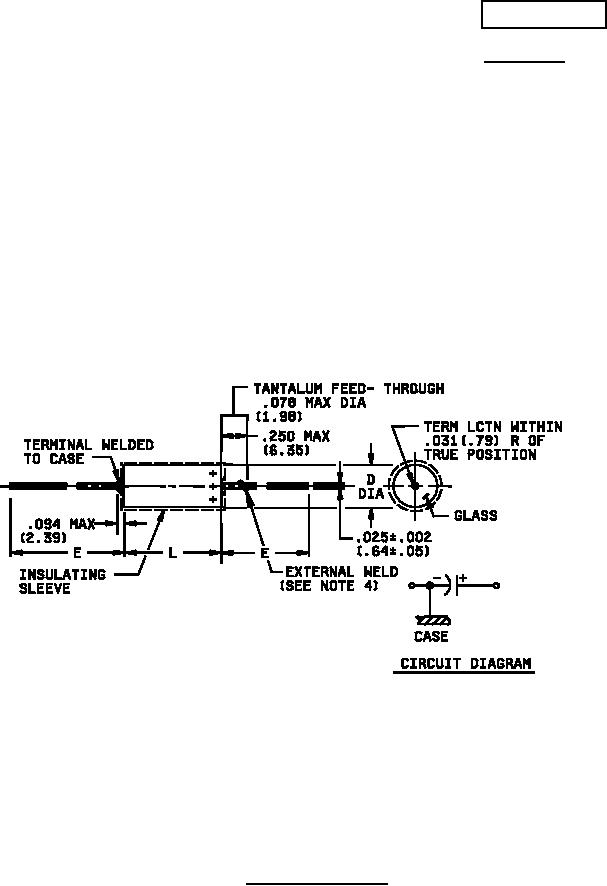

FIGURE 1. Style CLR91 capacitors.
AMSC N/A
FSC 5910
