MIL-PRF-39006/20A

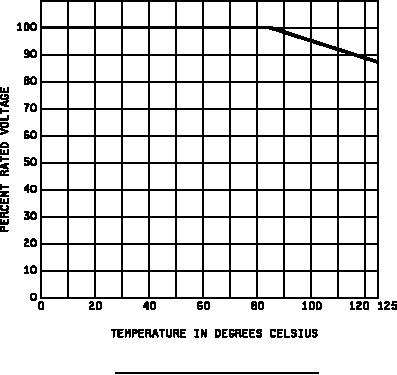

FIGURE 2. Voltage derating with temperature.
REQUIREMENTS:
Design and construction:
Dimensions and configuration: See figure 1.
Case type (not impervious to electrolyte): Tubular, uninsulated.
Seal type: G (hermetic).
Terminals: Solder-lug.
Rated temperature: -55° to +85°C, voltage derated to +125°C (see figure 2).
Rated voltage: See table I.
Capacitance (Cap.) (nom): See table I.
Cap. tolerance: See table I.
FR level: See table I.
Constant voltage conditioning: As specified in MIL-C-39006.
DC leakage (DCL) (max) (at 25°C): See table I.
Cap. (nom): Method 305 of MIL-STD-202. See table I.
Dissipation factor (DF) (max): See table I.
Seal: Method 112 of MIL-STD-202, conditions A and C.
Shock (specified pulse): Method 213 of MIL-STD-202, condition I (100G).
Vibration, high frequency: Method 204 of MIL-STD-202, condition D (20G).
Thermal shock: Method 107 of MIL-STD-202, condition A (with step 3 at +125°C). Number of cycles - 30.
DCL: 125 percent (max) of 25°C value of table I.
ĆCap.: Within ±5 percent of initial measurement.
DF: 115 percent (max) of initial requirement.
4
