INCH-POUND
MIL-PRF-39006/20A
6 August 2001
SUPERSEDING
MIL-C-39006/20
28 August 1970
MILITARY SPECIFICATION SHEET
CAPACITORS, FIXED, ELECTROLYTIC (NONSOLID ELECTROLYTE), TANTALUM,
(POLARIZED, SINTERED SLUG), 85°C (VOLTAGE DERATED TO 125°C),
ESTABLISHED RELIABILITY,
STYLE CLR17
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall
consist of this specification sheet and MIL-PRF-39006.
INACTIVE FOR NEW DESIGN AS OF
23 JUNE 1981.
FOR NEW DESIGN USE MIL-PRF-39006/22.
Inches
mm
Inches
mm
.004
0.10
.094
2.39
NOTES:
.005
0.13
.183
4.65
1. Dimensions are in inches.
.010
0.25
.312
7.92
2. Metric equivalents are given for general information only.
.016
0.41
.406
10.31
3. Unless otherwise specified, tolerance is ±.062 (1.57 mm).
.025
0.64
.535
13.59
.031
0.79
1.125
28.58

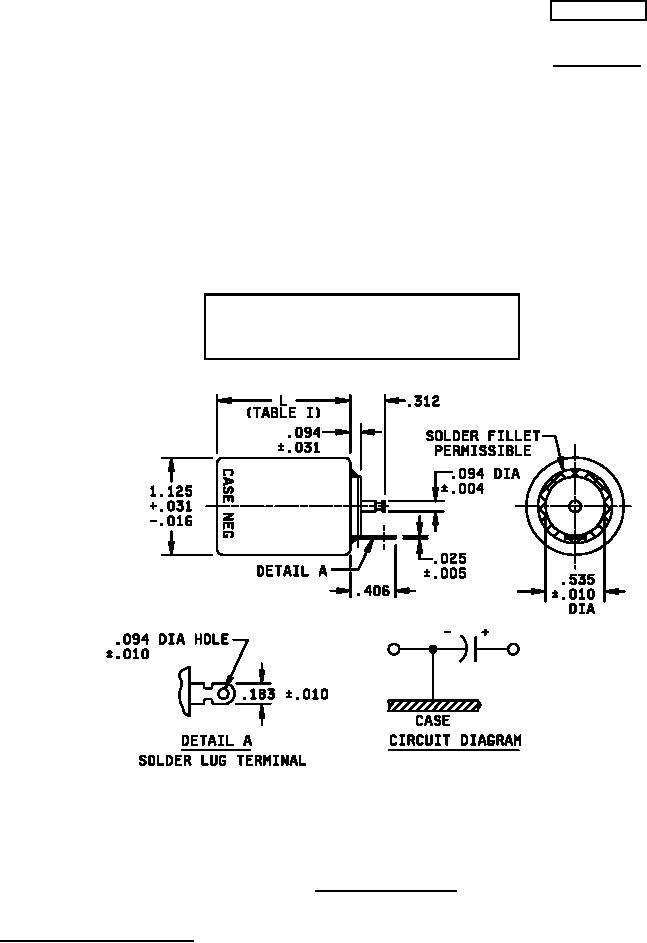

FIGURE 1. Style CLR17 capacitors.
