MIL-PRF-19978/15A
REQUIREMENTS:
Design and construction:
Dimensions and configuration - See figure 1 and table II.
Case material - Nonmagnetic (screwneck and end seal may be of magnetic material).
Terminals - Axial-wire lead (see figure 1).
3
Rated voltage - See table II.
Rated temperature - -65 to +85 C.
Capacitance (cap.) (nom) - See table II.
Capacitance tolerance - See table II.
Dissipation factor (DF) (max) - 0.6 percent.
Failure rate level - In accordance with MIL-PRF-19978.
Reliability - In accordance with MIL-PRF-19978.
Burn-in: In accordance with MIL-PRF-19978.
Radiographic inspection: In accordance with MIL-PRF-19978.
Seal: Method 112 of MIL-STD-202, test condition letter A.
Barometric pressure: In accordance with MIL-PRF-19978.
Test points:

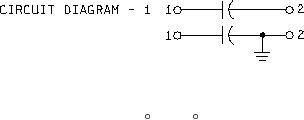

Circuit diagram 1 - Between terminals and case.
Circuit diagram 3 - Between ungrounded terminal and case.
Insulation resistance (IR):
Terminal to terminal - See table I.
Vibration, high frequency: Method 204 of MIL-STD-202, test condition B, with the following exception:
Direction and duration of motion - 4 hours in each of two mutually perpendicular directions (total of 8 hours), one
parallel and the other perpendicular to the cylindrical axis.
Salt spray: In accordance with MIL-PRF-19978.
Solderability: In accordance with MIL-PRF-19978.
