INCH-POUND
MIL-PRF-19978/1F
15 October 2009
SUPERSEDING
MIL-PRF-19978/1E
27 May 1999
PERFORMANCE SPECIFICATION SHEET
CAPACITORS, FIXED, PLASTIC (OR PAPER-PLASTIC) DIELECTRIC,
(HERMETICALLY SEALED IN METAL CASES),
STYLES CQ08, CQ09, CQ12, AND CQ13
This specification sheet is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the capacitors described herein
shall consist of this specification sheet and MIL-PRF-19978.
CHARACTERISTICS K AND M ARE INACTIVE FOR NEW DESIGN
AFTER 23 OCTOBER 1973. FOR REPLACEMENT, USE COMPARABLE
SEE TABLE III
SEE NOTE 4
SEE TABLE III
SEE TABLE III
SEE TABLE III
GROUNDED END
NOTE 4
E
H
F
.065 MAX
G
H ±.062
G ±.062
E ±.031
F ±.005
Case dimension D
Less than .500
.312
.250
.188
.144
.500 and Up
.438
.500
.250
.156
Style CQ12 (uninsulated case)

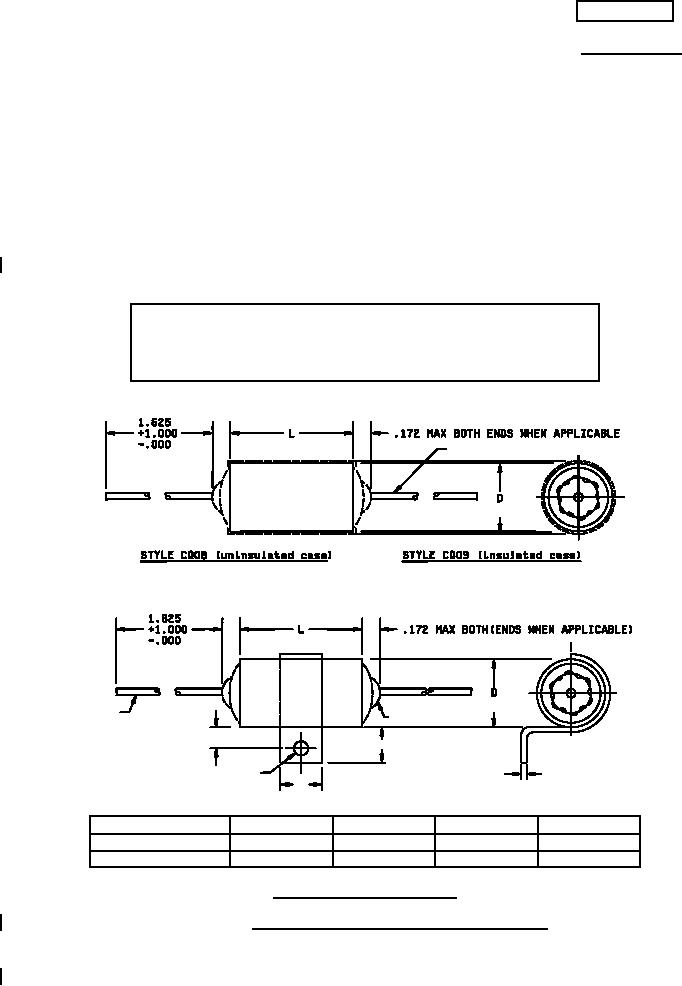

FIGURE 1. Styles CQ08, CQ09, CQ12, and CQ13 capacitors.
