MIL-DTL-3965/24C

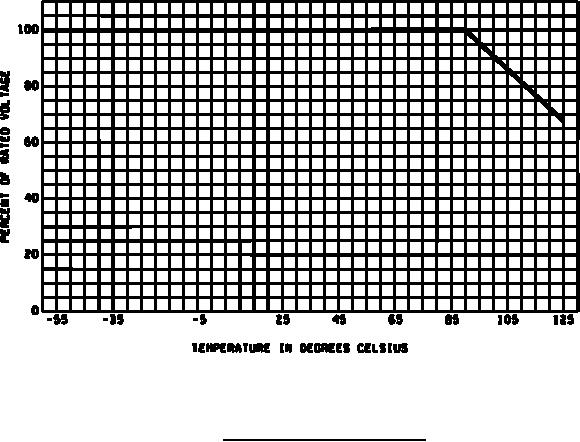

FIGURE 2. Voltage derating with temperature.
REQUIREMENTS:
Design and construction:
Dimensions and configuration: See figure 1.
Case type: Tubular; uninsulated (CL66), insulated (CL67).
Seal type: Hermetic (symbol G).
Terminals: Axial wire-lead.
Rated temperature: -55°C to +85°C, voltage derated to ±125°C (see figure 2).
Rated voltage: See table I.
Capacitance (cap) (nom): See table I.
Capacitance tolerance: Symbol J (± 5 percent), K (± 10 percent), or M (± 20 percent).
9
