MIL-DTL-3965/21F

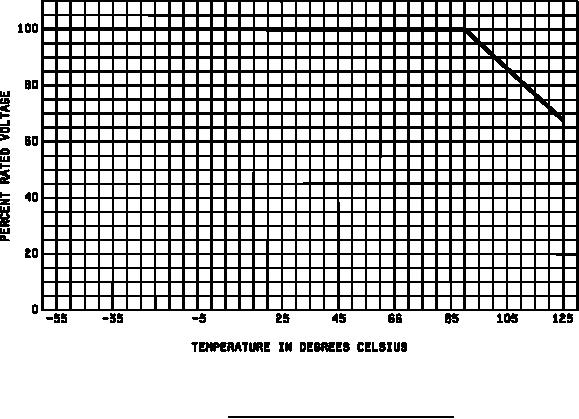

FIGURE 2. Voltage derating with temperature.
REQUIREMENTS:
Design and construction:
Dimensions and configuration:
Capacitors - See figure 1.
Brackets - See figure 3.
Case type - Rectangular, uninsulated
Seal type - Hermetic (symbol G).
Terminals - See figure 1.
Rated temperature - -55°C to +85°C,
voltage derated to +125°C (see figure 2).
Rated voltage - See table I.
Capacitance (cap) (nom) - See table I.
Capacitance tolerance - Symbol M (±20%).
3
