MIL-DTL-3965-20 Capacitor, Fixed, Electrolytic \(Nonsolid Electrolyte\), Tantalum, \(Polarized, Sintered Slug\) - 85 Degrees C \(Voltage Derated To 125 Degrees C\), Styles Cl10 And Cl13 \(See Notice 1 For Replacement Information\)

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9


MIL-DTL-3965/20F
TABLE II. Cross-reference data.
From
To
From
To
PIN 1/
PIN 2/
PIN 1/
PIN 2/
MIL-DTL-3965/20
MIL-PRF-39006/18
MIL-DTL-3965/20
MIL-PRF-39006/18
M39006/18-
M39006/18-
CL1-BC700TPG
1000
CL1-BK250TPG
1009
CL1-BC141TPG
1001
CL1-BM080TPG
1010
CL1-BD500TPG
1002
CL1-BM160TPG
1011
CL1-BD101TPG
1003
CL1-BR040TPG
1012
CL1-BF280TPG
1004
CL1-BR080TPG
1013
CL1-BF560TPG
1005
CL1-BS2R5TPG
1014
CL1-BH200TPG
1006
CL1-BS050TPG
1015
CL1-BH400TPG
1007
CL1-BT020TPG
1016
CL1-BK120TPG
1008
CL1-BT040TPG
1017
1/ Complete PIN will include an additional symbol to indicate style.
2/ PIN referenced will substitute for styles CL10 and CL13.

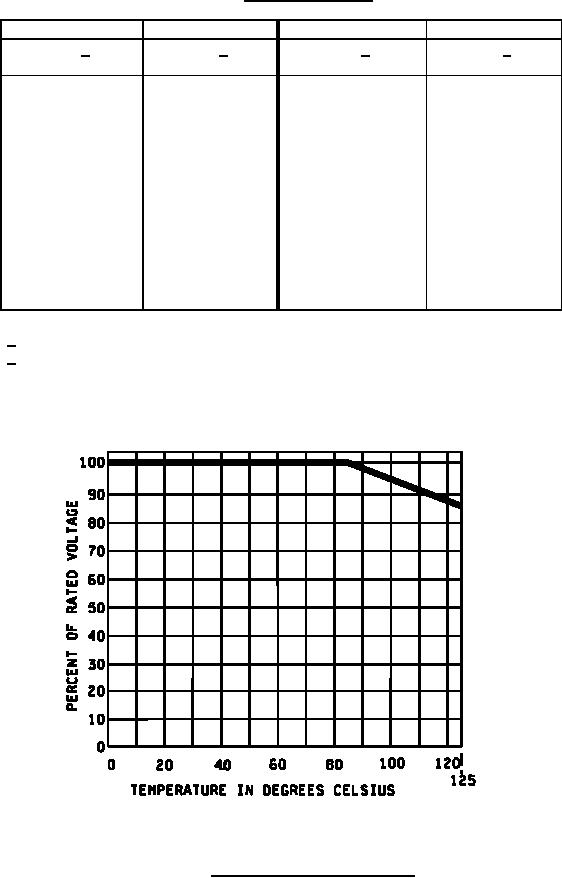

FIGURE 2. Voltage derating with temperature.
