MIL-DTL-3965-19 Capacitors, Fixed, Electrolytic \(Nonsolid Electrolyte\), Tantalum, \(Polarized, Sintered Slug\) - 85 Degrees C \(Voltage Derated To 125 Degrees C\), Styles Cl17 And Cl18 \(See Notice 1 For Replacement Information\)

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9

MIL-DTL-3965/19F

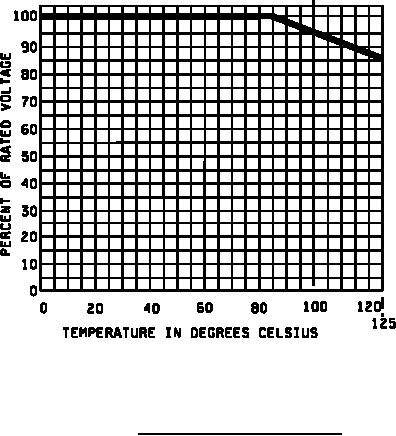

FIGURE 2. Voltage derating with temperature.

REQUIREMENTS:

Design and construction:

Dimensions and configuration: See figure 1.

Case type: Tubular; uninsulated.

Seal type: Hermetic (symbol G).

Terminals: Solder-lug.

Rated temperature: -55�C to +85�C, voltage derated to +125�C (see figure 2).

Rated voltage: See table I.

Capacitance (cap) (nom): See table I.

Capacitance tolerance: Symbol M (� 20 percent) or T (+50 percent, -15 percent).
