MIL-DTL-3965-19 Capacitors, Fixed, Electrolytic \(Nonsolid Electrolyte\), Tantalum, \(Polarized, Sintered Slug\) - 85 Degrees C \(Voltage Derated To 125 Degrees C\), Styles Cl17 And Cl18 \(See Notice 1 For Replacement Information\)

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9

MIL-DTL-3965/19F

Inches

.004

0.10

.183

4.65

.005

0.13

.312

7.92

.010

0.25

.375

9.53

.016

0.41

.406

10.31

.025

0.64

.535

13.59

.031

0.79

1.125

28.58

.094

2.39

NOTES:

1. All dimensions are in inches.

2. Metric equivalents (to the nearest .01 mm) are given for general information only and are based

upon 1 inch = 25.4 mm.

3. Unless otherwise specified, tolerance is � .062 (1.57 mm).

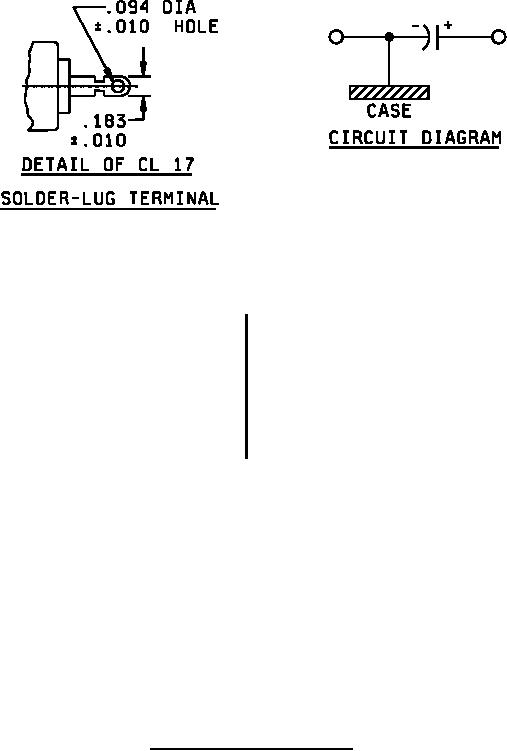

FIGURE 1. Styles CL17 and CL18 capacitors � Continued.
