MIL-DTL-3965/1J

STYLE CL16

Inches

.004

0.10

.140

3.56

.005

0.13

.183

4.65

.007

0.18

.193

4.90

.010

0.25

.313

7.95

.015

0.38

.375

9.53

.020

0.51

.406

10.31

.025

0.64

.500

12.70

.030

0.76

.528

13.41

.031

0.79

.535

13.59

.062

1.57

.590

14.99

.094

2.39

.875

22.23

NOTES:

1. All dimensions are in inches.

2. Metric equivalents (to the nearest .01 mm) are given for general information only and are based

upon 1 inch = 25.4 mm.

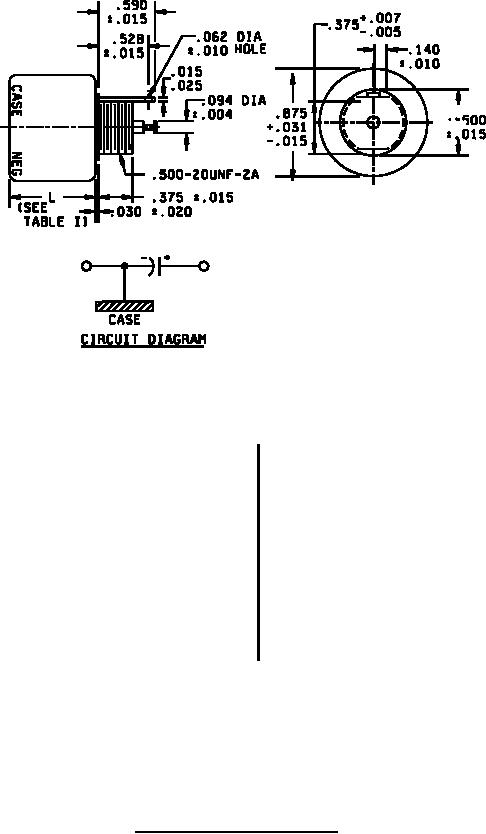

FIGURE 1. Styles CL14 and CL16 capacitors � Continued.
