MIL-C-19978/16B
TABLE II. Millimeter equivalent of decimal inches.
Inches
mm
Inches
mm
Inches
mm
Inches
mm
Inches
mm
0.005
0.13
0.235
5.97
0.750
19.05
1.312
33.32
2.062
52.37
0.015
0.38
0.312
7.92
0.812
20.62
1.375
34.93
2.125
53.98
0.016
0.41
0.400
10.16
0.875
22.23
1.562
39.67
2.312
58.72
0.031
0.79
0.562
14.27
1.000
25.40
1.625
41.28
2.375
60.33
0.047
1.19
0.670
17.02
1.062
26.97
1.812
46.02
0.062
1.57
0.688
17.48
1.125
28.58
1.875
47.63
Case material: Nonmagnetic (end seal may be of magnetic material).
Dielectric material: Paper and polyethelene terephthalate (K).
Terminals: Axial-wire lead (see figure 1).

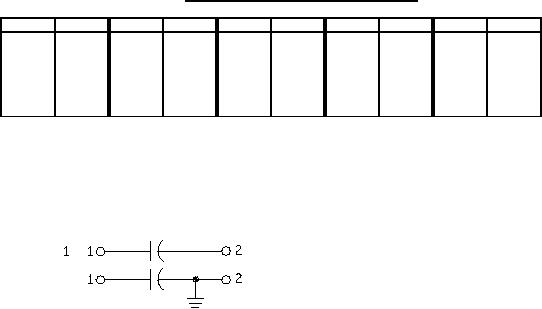

Circuit diagram:
3
Rated voltage: See table I.
Rated temperature: -65° to +125°C.
Capacitance (nominal): See table I.
Capacitance tolerance: ±10 percent (symbol K).
Dissipation factor (DF) (max): 1.0 percent.
Failure rate level: M, P, R or S in accordance with MIL-PRF-19978.
Burn-in: In accordance with MIL-PRF-19978.
Radiographic inspection: In accordance with MIL-PRF-19978.
Seal: Method 112 of MIL-STD-202, test condition letter A.
Dielectric withstanding voltage (DWV):
Sleeving: In accordance with MIL-PRF-19978.
Barometric pressure, qualification only: In accordance with MIL-PRF-19978.
Test points:
Circuit diagram 1: Between terminals and case.
Circuit diagram 3: Between ungrounded terminal and case.
Insulation resistance (IR):
Sleeving: In accordance with MIL-PRF-19978.
