MIL-PRF-83500/1C

STYLE CRL03

Inches

.002

0.05

.135

3.43

.010

0.25

.230

5.84

.015

0.38

.280

7.11

.020

0.50

.310

7.87

.030

0.76

.320

8.13

.036

0.91

.390

9.91

.042

1.07

.400

10.16

.050

1.27

.635

16.13

.070

1.78

.800

20.32

.080

2.03

.853

21.67

.105

2.67

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for general information only.

3. Unless otherwise specified, tolerance is �.010 inch (0.25 mm).

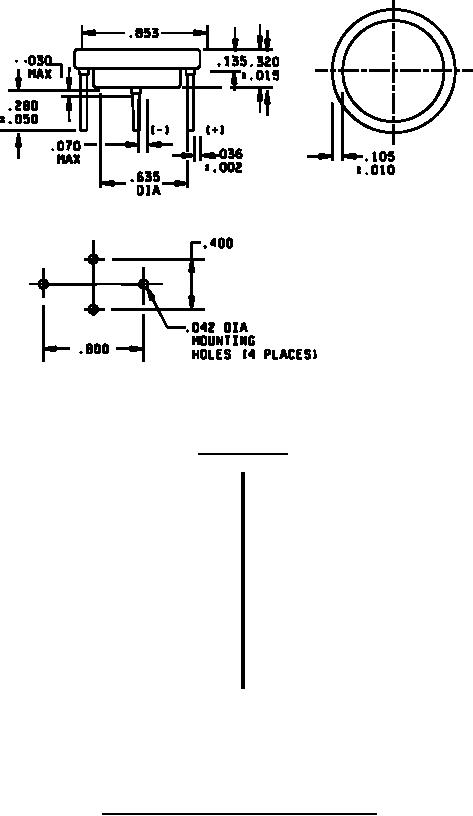

FIGURE 1. Styles CRL01, CRL02, and CRL03 capacitors � Continued.
