INCH-POUND
MIL-PRF-83421/2D
27 February 2012
SUPERSEDING
MIL-PRF-83421/2C
24 January 2006
PERFORMANCE SPECIFICATION SHEET
CAPACITORS, FIXED, METALLIZED PLASTIC FILM DIELECTRIC,
(DC, AC, OR DC AND AC), HERMETICALLY SEALED IN METAL CASES,
ESTABLISHED RELIABILITY
STYLES CRH11, CRH12, AND CRH13 (INSULATED)
This specification sheet is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-PRF-83421.
NOTES:
1. Number 18 AWG wire .040 inch ± .002 (1.02 ± 0.05 mm).
2. Dimensions are in inches.
3. Metric equivalents are in parentheses and are given for general information only.
4. See table I for additional dimensions.
5. Insulating sleeve shall extend beyond the capacitor body. Insulating sleeve thickness shall not exceed .005
inch (0.13 mm).
6. Plastic insulating sleeve shall be transparent; marking shall be applied to the capacitor case.

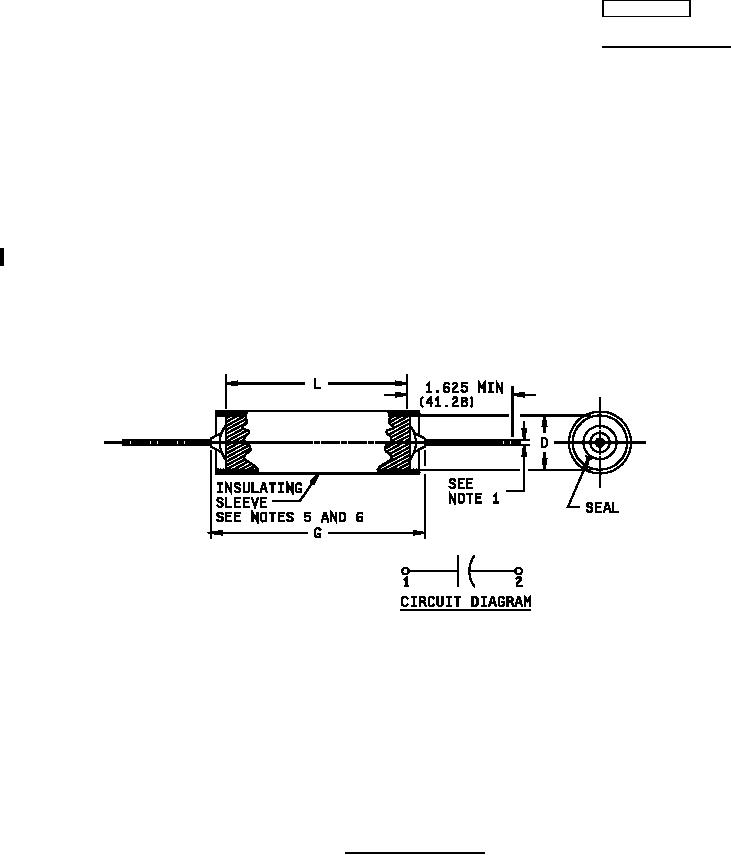

FIGURE 1. Capacitor configuration.
AMSC N/A
FSC 5910
