MIL-PRF-83421/1D
Dielectric withstanding voltage (DWV): Method 301 of MIL-STD-202.
Terminal to terminal:

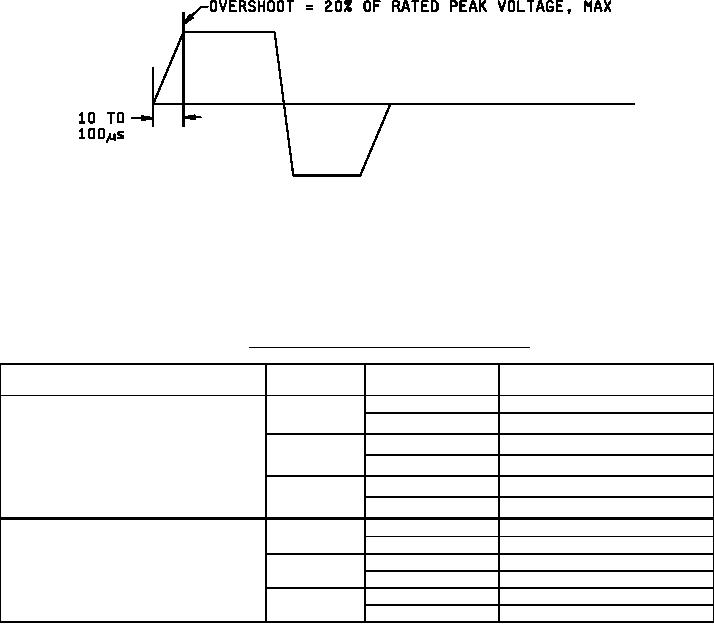

AC: 100 Hz ±10 Hz square wave, peak-to-peak voltage, three times dc rated voltage for 60 seconds,
minimum but need not exceed 800 V peak-to-peak.
DC: 200 percent of dc rated voltage for 60 seconds, minimum.
Insulation resistance (IR): Method 302 of MIL-STD-202. Charge time 5 minutes, maximum; however, for
capacitance values greater than 1.0 F, an additional 1 minute per F is permitted.
Terminal to terminal (dc rated voltage): See table III.
Terminals to case: 10,000 megohms, minimum.
TABLE III. Insulation resistance versus capacitance value.
Minimum insulation resistance
Styles
Temperature
Capacitance
(terminal to terminal)
0F to .1F
3,000,000 megohms
+25°C
Greater than .1F
300,000 megohm-microfarads
0F to .1F
300,000 megohms
+100°C
CHR01, CHR02, CHR03, CHR04, CHR05
Greater than .1F
30,000 megohm-microfarads
0F to .1F
20,000 megohms
+125°C
Greater than .1F
2,000 megohms-microfarads
0F to .1F
1,000,000 megohms
+25°C
Greater than .1F
100,000 megohms-microfarads
0F to .1F
50,000 megohms
CHR06, CHR07, CHR08,CHR09, CHR00
+100°C
Greater than .1F
5,000 megohm-microfarads
0F to .1F
10,000 megohms
+125°C
Greater than .1F
1,000 megohm-microfarads
Dissipation factor (DF): 0.15 percent maximum.
Dielectric absorption: 0.1 percent, maximum.
Barometric pressure (reduced): Method 105 of MIL-STD-202, condition D (100,000 feet). 125 percent of dc
rated voltage applied. See MIL-PRF-83421 for voltage limitations.
Vibration, random (optional): In accordance with MIL-PRF-83421 when ordered with "-" replaced with "H" in the
PIN.
11
