INCH-POUND
MIL-PRF-55681/4G
10 September 2010
SUPERSEDING
MIL-PRF-55681/4F
15 June 2005
PERFORMANCE SPECIFICATION SHEET
CAPACITORS, CHIP, MULTIPLE LAYER, FIXED, CERAMIC DIELECTRIC,
ESTABLISHED RELIABILITY AND NON-ESTABLISHED RELIABILITY,
STYLES CDR11, CDR12, CDR13, AND CDR14 (HIGH FREQUENCY)
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification and MIL-PRF-55681.
Inches
mm
.005
0.13
.010
0.25
.015
0.38
.020
0.51
.025
0.64
.030
0.76
.035
0.89
.055
1.40
.057
1.45
.102
2.59
.110
2.79
Dimensions
T
Style
L
W
Y
Min
Max
.055 ±.015
.055 ±.015
CDR11
.020
.057
.010 -.005 +.010
.055 ±.025
.055 ±.015
CDR12
.020
.057
.010 -.005 +.010
.110 ±.020
.110 ±.020
.015 ±.010
CDR13
.030
.102
.110 ±.020
.015 ±.010
CDR14
.110 -.020, +.035
.030
.102
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.

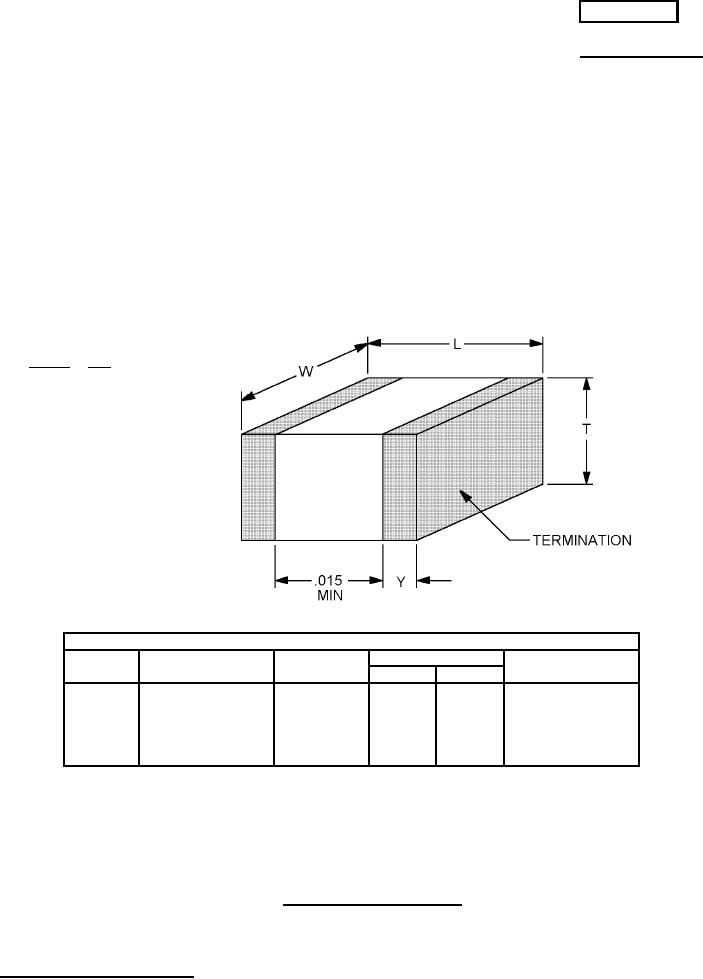

FIGURE 1. Dimensions and configuration.
AMSC N/A
FSC 5910
