INCH-POUND
MIL-PRF-55681/3E
10 October 2006
SUPERSEDING
MIL-PRF-55681/3D
3 July 1997
PERFORMANCE SPECIFICATION SHEET
CAPACITORS, CHIP, MULTIPLE LAYER,
FIXED, CERAMIC DIELECTRIC, ESTABLISHED RELIABILITY
AND NON-ESTABLISHED RELIABILITY,
STYLE CDR06
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this
specification and MIL-PRF-55681.
Inches
mm
.010
0.25
.015
0.38
.020
0.51
.025
0.64
.080
2.03
.225
5.72
.250
6.35
Dimensions
L ±.020
W ±.020
T
Min
Max
.225
.250
.020
.080
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Dimensions and tolerances are for bare chips. For solder coated terminations, add .025 inch (0.64 mm) to the
positive length tolerance and .015 inch (0.38 mm) to the positive width and thickness tolerances.

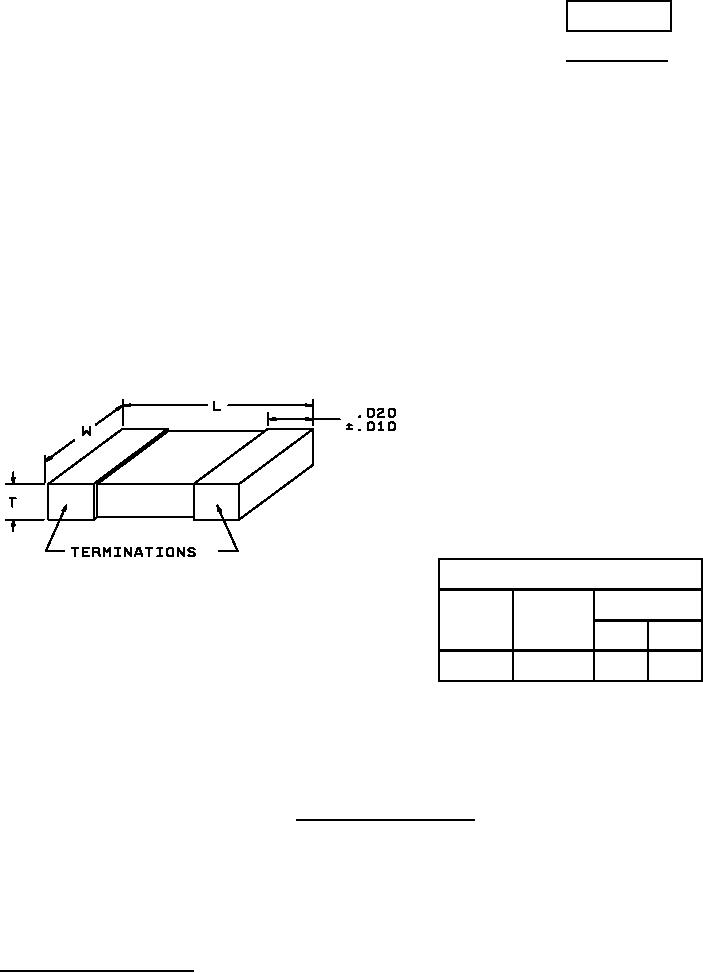

FIGURE 1. Dimensions and configuration.
AMSC N/A
FSC 5910
DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited.
