INCH-POUND
MIL-PRF-55514/7C
5 April 2013
SUPERSEDING
MIL-PRF-55514/7B
9 October 1997
PERFORMANCE SPECIFICATION SHEET
CAPACITORS, FIXED, METALIZED PLASTIC DIELECTRIC,
DC-AC, IN NONMETAL CASES, ESTABLISHED RELIABILITY,
STYLE CFR09
This specification sheet is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist
of this specification sheet and MIL-PRF-55514.
NOTES:
1. Dimensions are in inches.
2. Leads shall be of solid wire and located on centerline within ± .062 inch (1.57 mm) but not less than .03 inch (0.8
mm) from edge of capacitor.
3. Millimeters are in parentheses.
4. Metric equivalents are given for general information only.
5. Lead length may be a minimum of 1 inch long for use in tape and reel packaging when specified in the ordering
data.

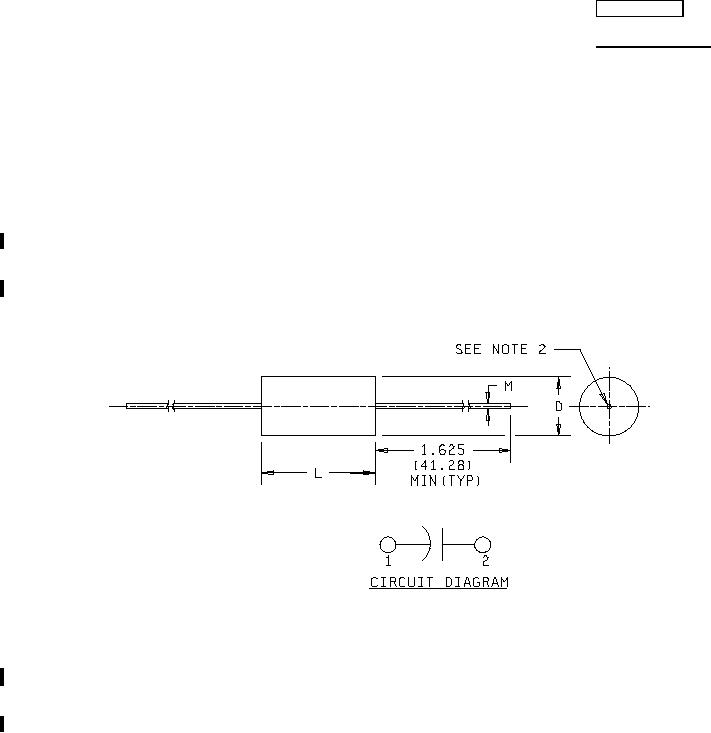

FIGURE 1. Style CFR09 capacitors.
AMSC N/A
FSC 5910
