INCH-POUND
MIL-PRF-55514/1C
21 February 2002
SUPERSEDING
MIL-PRF-55514/1B
9 October 1997
PERFORMANCE SPECIFICATION SHEET
CAPACITORS, FIXED, PLASTIC DIELECTRIC, DC,
IN NONMETAL CASES, ESTABLISHED RELIABILITY,
STYLE CFR02
This specification sheet is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification and MIL-PRF-55514.
NOTES:
1. Dimensions are in inches.
2. Leads shall be of solid wire and located on centerline within ±.062 inch (1.57 mm) but
not less than .03 inch (0.76 mm) from edge of capacitor.
3. Millimeters are in parentheses.
4. Metric equivalents (to the nearest .01 mm) are given for general information only.
5.
Lead length may be a minimum of 1-inch long for use in tape and reel packaging when
specified in the ordering data.

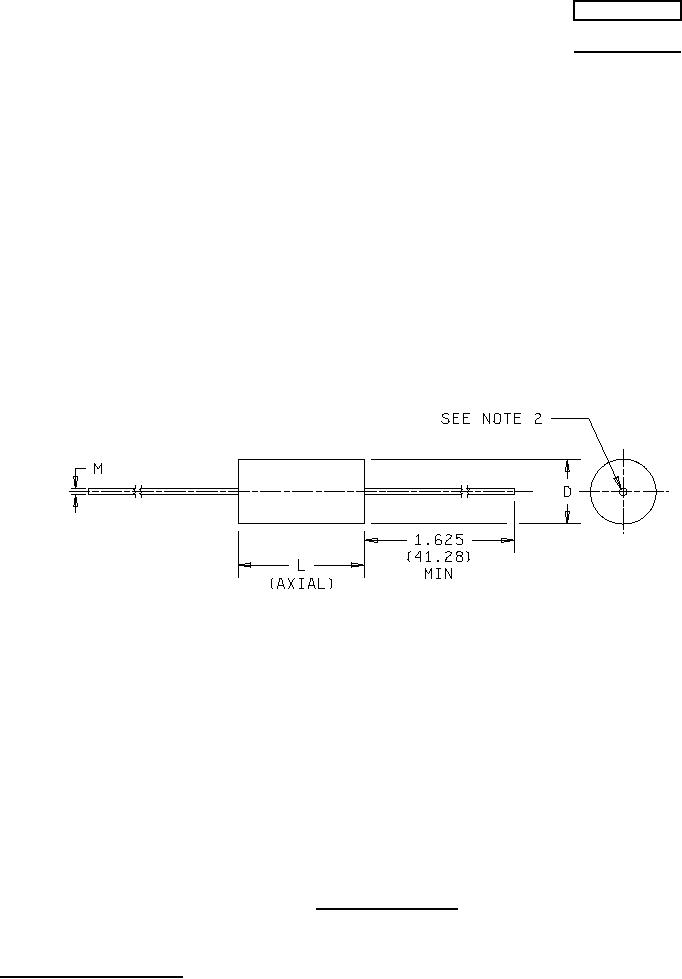

FIGURE 1. Style CFR02 capacitors.
AMSC N/A
1 of 7
FSC 5910
DISTRIBUTION STATEMENT. Approved for public release; distribution is unlimited.
