MIL-PRF-39003/10D
3/ Any failure shall require 100 percent visual and mechanical examination of the lot.
4/ All capacitors delivered to this specification shall meet nominal values specified in
5/ To the requirements herein.
6/ Overall PDA shall not exceed 10%.
7/ MIL-PRF-39003 X-ray pictorials shall be used with the following details and exceptions:
a. Tubelet solder fill that does not meet MIL-PRF-39003 basic requirement. Voids in the
tubelet solder or separation from lead or tubelet that will reduce solder fill to less than
what is required in MIL-PRF-39003 basic document.
b. The top of the solder fill may extend above the tubelet but cannot be greater that .015
(0.38mm) below the top of the tubelet. Solder shall not extend below the tubelet inside of
the capacitor. (see MIL-PRF-39003 Figure 4).
c. Anodes may be cocked within the case, provided the pellet is not greater than 15 degrees
from being parallel with the wall of the case.
d. Bent tantalum riser wire is rejectable.

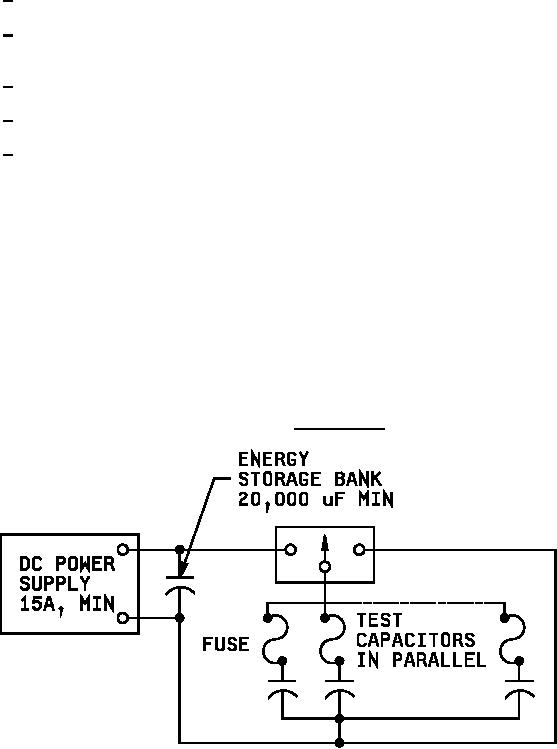

FIGURE 2. Typical circuit.
