INCH-POUND
MIL-PRF-20/38C
21 April 2011
SUPERSEDING
MIL-PRF-20/38B
21 June 2001
PERFORMANCE SPECIFICATION SHEET
CAPACITORS, FIXED, CERAMIC DIELECTRIC
(TEMPERATURE COMPENSATING),
ESTABLISHED AND NON-ESTABLISHED RELIABILITY,
STYLES CCR08 AND CC08
Style CC08 is inactive for new design
after 21 April 2011. Use CCR08.
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the capacitors described herein
shall consist of this specification sheet and MIL-PRF-20.
Inches
mm
.001
.03
.004
.10
.010
.25
.020
.51
.025
.64
.030
.76
.240
6.10
.400
10.16
.480
12.19
1.250
31.75
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Lead diameter shall be .025 +.004, -.001 (0.64 +0.10, -0.03 mm).

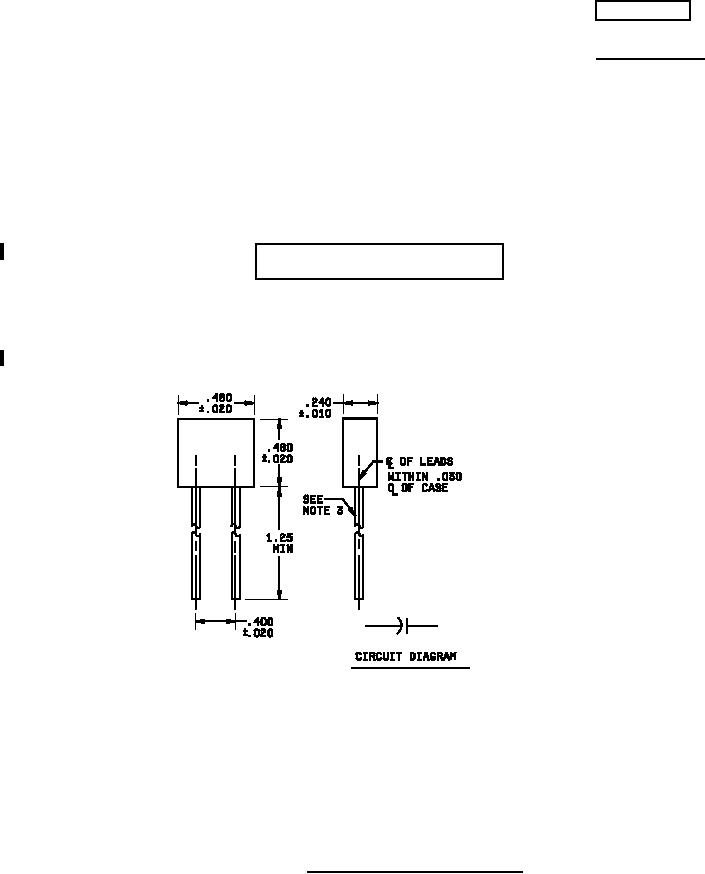

FIGURE 1. Styles CCR07 and CC07 capacitors.
