INCH-POUND
MIL-PRF-20/37F
21 April 2011
SUPERSEDING
MIL-PRF-20/37E
21 June 2001
PERFORMANCE SPECIFICATION SHEET
CAPACITORS, FIXED, CERAMIC DIELECTRIC
(TEMPERATURE COMPENSATING),
ESTABLISHED AND NON-ESTABLISHED RELIABILITY,
STYLES CCR07 AND CC07
Style CC07 is inactive for new design
after 21 April 2011. Use CCR07.
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the capacitors described herein
shall consist of this specification sheet and MIL-PRF-20.
Inches
mm
.020
0.51
.030
0.76
NOTES:
.400
10.16
1. Dimensions are in inches.
.480
12.19
2. Metric equivalents are given for information only.
1.250
31.80
3. Lead diameter shall be .025 +.004, -.001 (0.64 +0.10, -0.03 mm).
4. Thickness shall be .200 max (5.08 mm) for 100,000 pF capacitors or
.140 ± .010 (3.56 ± 0.25 mm) for all other capacitors.

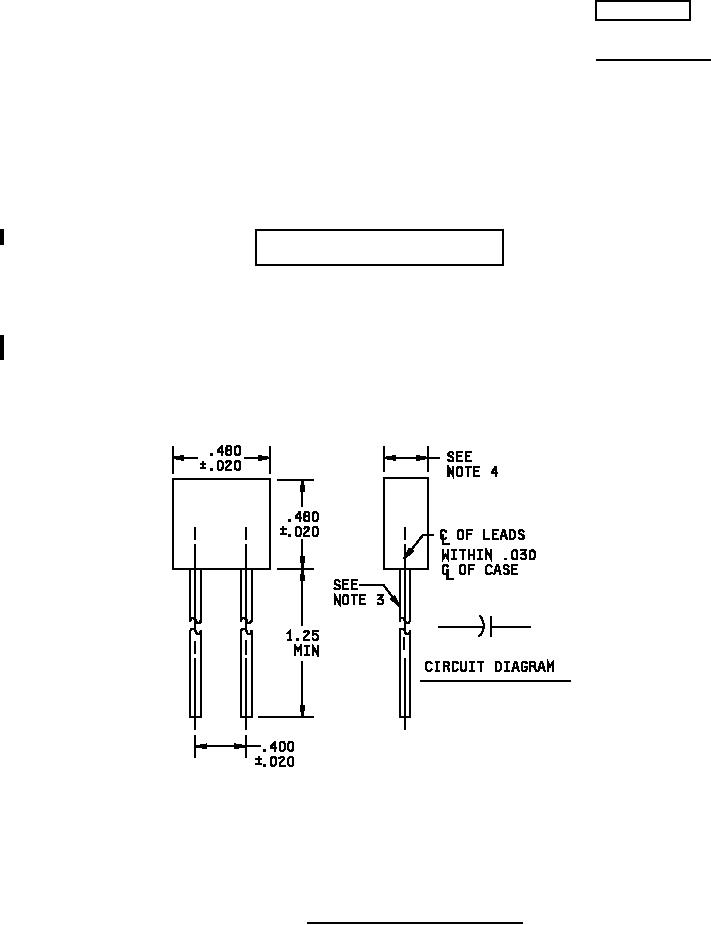

FIGURE 1. Styles CCR07 and CC07 capacitors.
AMSC N/A
FSC 5910
