MIL-PRF-20/35K
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Lead diameter shall be .023 (0.58 mm) to .029 (0.74 mm).

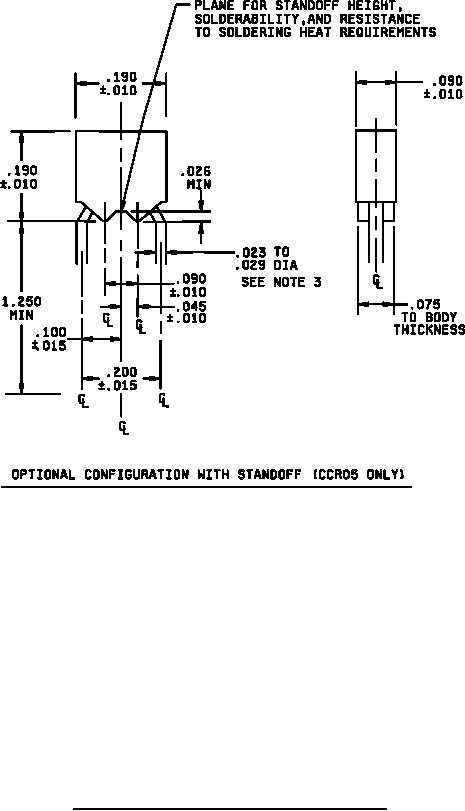

4. Optional standoffs for style CCR05 shall be of triangular shape so that the standoffs will
provide line contact with surface upon which the capacitor is mounted. The shape of the
triangle is optional.
5. Thickness of standoffs shall be .075 (1.90 mm) to the body thickness.
6. Lead length may be a minimum of .625 (15.88 mm) for use in tape and reel automatic
insertion equipment, when specified.
7. At the option of the user, the standoff configuration may be furnished as a replacement for
the nonstandoff configuration of the same style.
FIGURE 1. Styles CCR05, CC05, CCR09, and CC09 capacitors - Continued.
2
