INCH-POUND
MIL-PRF-20/31C
21 April 2011
SUPERSEDING
MIL-PRF-20/31B
21 June 2001
PERFORMANCE SPECIFICATION SHEET
CAPACITORS, FIXED, CERAMIC DIELECTRIC
(TEMPERATURE COMPENSATING),
ESTABLISHED AND NON-ESTABLISHED RELIABILITY,
STYLES CCR79 AND CC79
CC79 is inactive for new design after
21 April 2011. Use CCR79.
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the capacitors described herein
shall consist of this specification sheet and MIL-PRF-20.
Inches
mm
NOTES:
.015
0.38
1. Dimensions are in inches.
.020
0.51
2. Metric equivalents are given for general information only.
.027
0.69
3. Lead diameter shall be .015 (0.38 mm) to .027 (0.69 mm).
.350
8.89
4. Lead length may be a minimum of 1.00 inch (25.4 mm) long for
.690
17.53
use in tape and reel packaging, when specified in the ordering data.
1.250
31.75

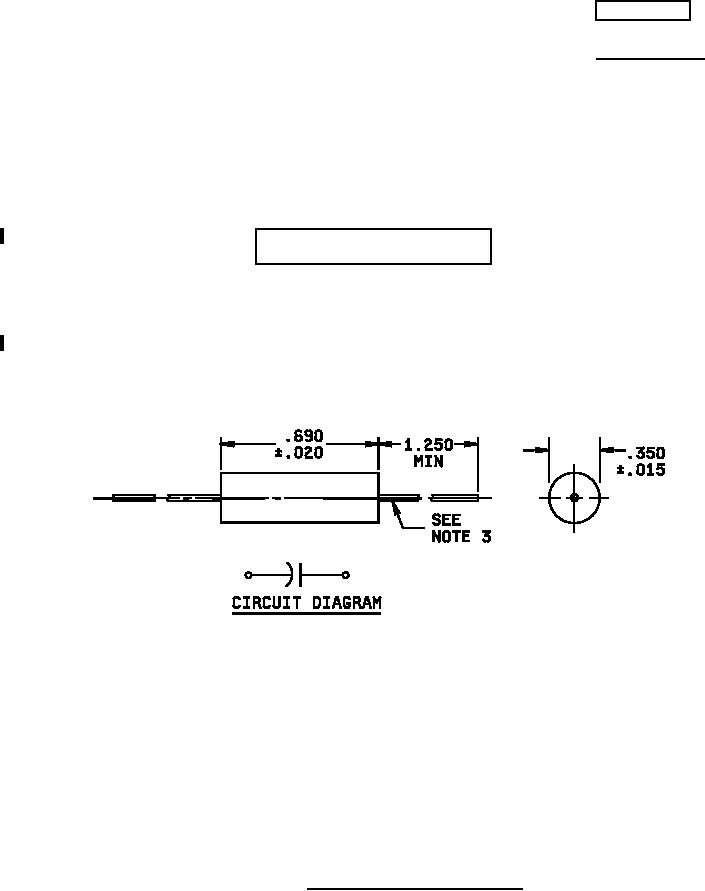

FIGURE 1. Styles CCR79 and CC79 capacitors.
