INCH-POUND
MIL-PRF-19978/5B
27 May 1999
SUPERSEDING
MIL-C-19978/5A
20 October 1972
PERFORMANCE SPECIFICATION SHEET
CAPACITORS, FIXED, PLASTIC DIELECTRIC, HERMETICALLY
SEALED IN METAL CASES), STYLES CQ06 AND CQ07
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The complete requirements for procuring the capacitors described herein
shall consist of this specification and MIL-PRF-19978.
STYLE CQ06 INACTIVE FOR NEW EQUIPMENT
DESIGN AFTER 20 October 1972.
Style CQ06 (uninsulated case)
Style CQ07 (insulated case)
Inches
mm
Inches
mm
.001
.03
.235
5.97
.004
.10
.312
7.92
.020
.51
.400
10.16
.025
.64
.562
14.27
.032
.81
1.000
25.40
.172
4.37
1.562
39.67
.175
4.45
1.625
41.28
.195
4.95
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Basic case dimensions for the insulated styles shall be the same as for the uninsulated styles.
4. Leads shall be tinned solid wire, .020 (No. 24 AWG) for cases .175 and .195 in diameter; .025 (No.
22 AWG) for cases .235 thru .312 diameter; and .032 (No. 20 AWG) for cases .400 diameter and
above. Tolerance on all lead wire diameters shall be +.004, -.001.
5. Capacitors with dimension L of 1.562 or D of .562 and larger, are not intended to be supported by
their leads. Those capacitors shall be supported with a supplementary means of mounting, such as
tangential retainer for styles CQ06, and a wrap-around band for style CQ07. The supporting device
will not be supplied with the capacitor.
6. Lead length may be a minimum of 1-inch long for use in tape and reel packaging when specified in
the ordering data.

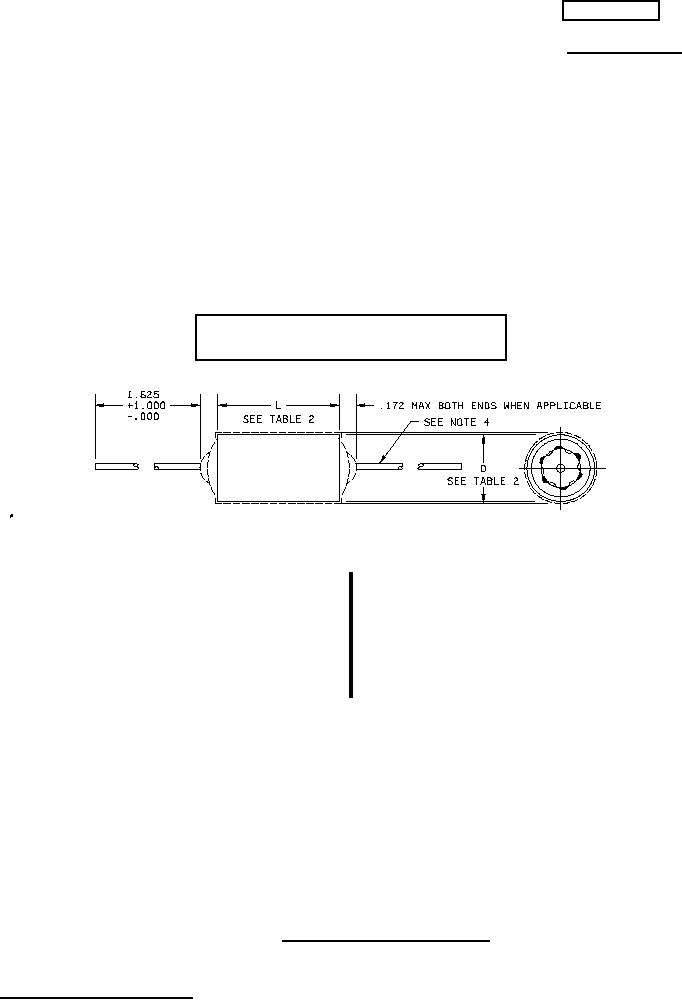

FIGURE 1. Styles CQ06 and CQ07 capacitors.
AMSC N/A
1 of 7
FSC 5910
DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited.
