INCH-POUND
MIL-PRF-123/3F
21 April 2014
SUPERSEDING
MIL-PRF-123/3E
28 September 2007
PERFORMANCE SPECIFICATION SHEET
CAPACITORS, FIXED, CERAMIC DIELECTRIC,
(TEMPERATURE STABLE AND GENERAL PURPOSE),
HIGH RELIABILITY, LEADED, STYLE CKS07
This specification sheet is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-PRF-123.
Inches
mm
.002
0.05
.020
0.51
.025
0.64
.030
0.76
.400
10.16
.480
12.19
1.250
31.75
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information.
3. Unless otherwise specified, tolerance is ±.010 (0.25 mm).
4. Thickness shall be .240 (6.10 mm) ± .010 (0.25 mm) for 100 Vdc capacitance values of 15,000 and 18,000 pF in
BP dielectric; .200 (5.08 mm) maximum for capacitance values of 82,000, 91,000, and 100,000 pF in BP
dielectric; and .140 (3.56 mm) ± .010 (0.25 mm) for all others.

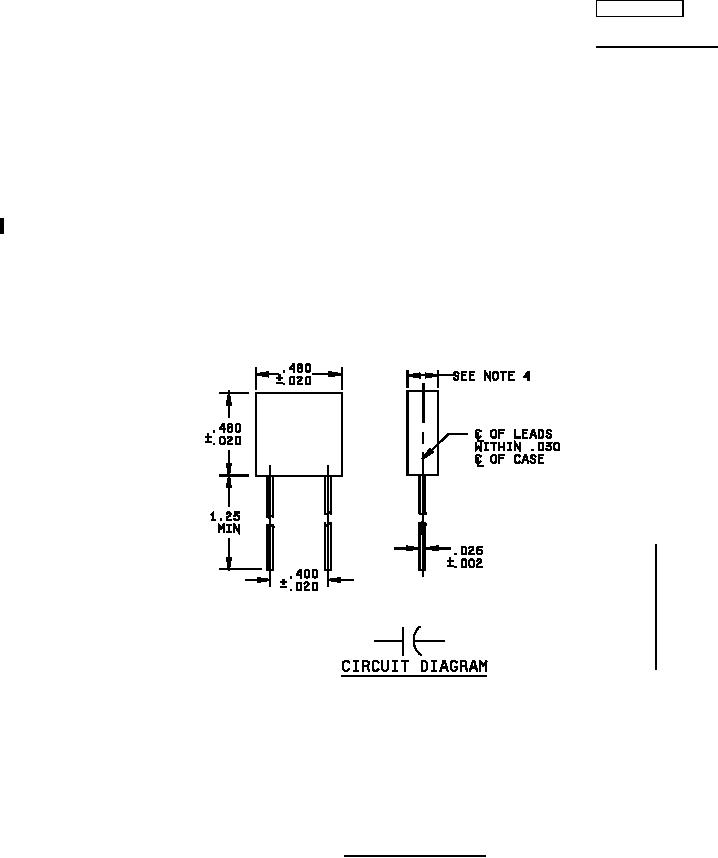

FIGURE 1. Style CKS07 capacitors.
AMSC N/A
FSC 5910
