INCH-POUND
MIL-PRF-123/12D
3 March 2006
SUPERSEDING
MIL-PRF-123/12C
18 June 2001
PERFORMANCE SPECIFICATION SHEET
CAPACITORS, FIXED, CERAMIC DIELECTRIC,
(TEMPERATURE STABLE AND GENERAL PURPOSE),
HIGH RELIABILITY, NONLEADED, STYLE CKS53
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-PRF-123.
Inches
mm
.010
0.25
S
W
L
T
.015
0.38
±.010
±.015
±.015
.020
0.51
Min
Max
.065
1.65
.080
2.03
.180
.080
.020
.065
.020
.180
4.57
NOTES:
1.
Dimensions are in inches.
2.
Metric equivalents are given for general information only.
3.
Dimensions and tolerances are for bare chips. For solder coated terminations, add .025 inch (0.64 mm) to
the positive length tolerance and .015 inch to the positive width and thickness tolerances.

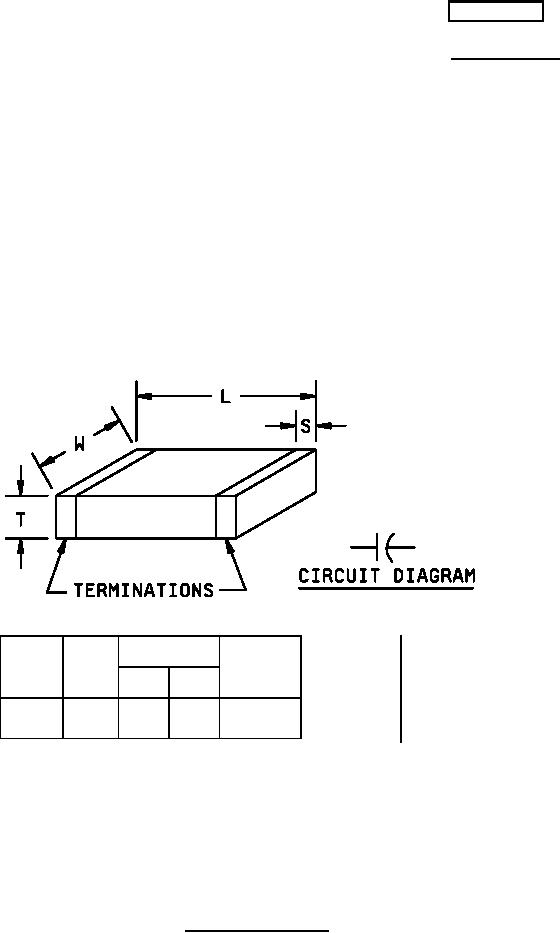

FIGURE 1. Style CKS53 capacitors.
