INCH-POUND
MIL-PRF-123/1E
21 April 2014
SUPERSEDING
MIL-PRF-123/1D
28 September 2007
PERFORMANCE SPECIFICATION SHEET
CAPACITORS, FIXED, CERAMIC DIELECTRIC,
(TEMPERATURE STABLE AND GENERAL PURPOSE),
HIGH RELIABILITY, STYLE CKS05
This specification sheet is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-PRF-123.
Inches
mm
.002
0.05
.015
0.38
.025
0.64
.045
1.14
.090
2.29
.100
2.54
.190
4.83
.200
5.08
1.250
31.75
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerances are ±.010 inch (0.25 mm).
4. For flush mounting, .078 inch (1.98 mm) printed-circuit-hole diameter is required to clear shoulder.

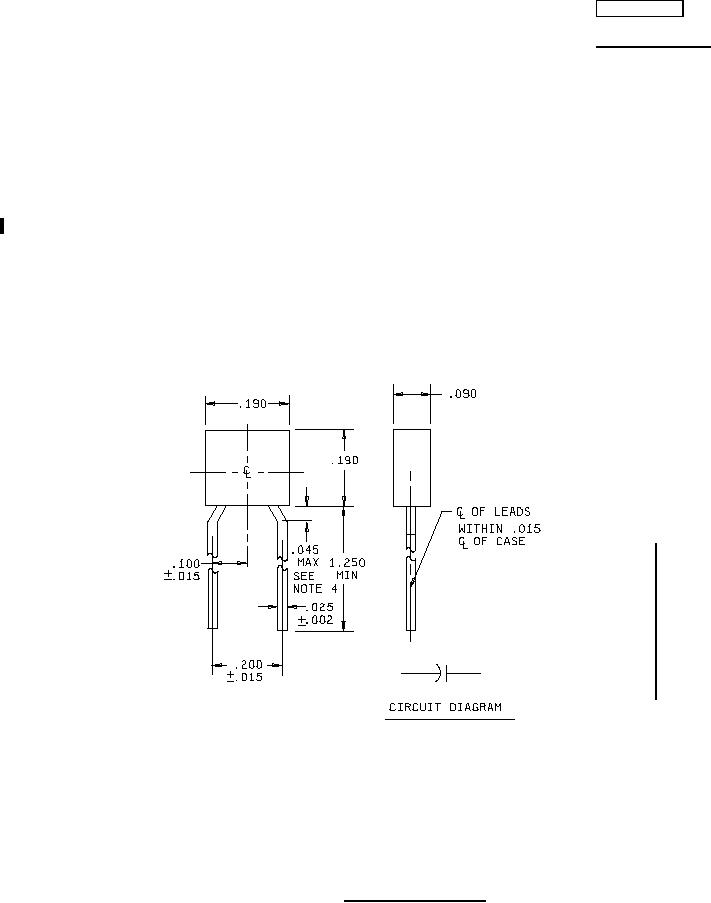

FIGURE 1. Style CKS05 capacitors.
AMSC N/A
FSC 5910
